500kg Package Test Transportation Shaker Table For Loose Load Vibration Testing

500kg Package Test Transportation Shaker Table For Loose Load Vibration Testing
500kg Package Test Transportation Shaker Table For Loose Load Vibration Testing
500kg Package Test Transportation Shaker Table For Loose Load Vibration Testing 500kg Package Test Transportation Shaker Table For Loose Load Vibration Testing 500kg Package Test Transportation Shaker Table For Loose Load Vibration Testing 500kg Package Test Transportation Shaker Table For Loose Load Vibration Testing

Large Image :  500kg Package Test Transportation Shaker Table For Loose Load Vibration Testing

Product Details:
Place of Origin: CHINA
Brand Name: LABTONE
Certification: CE, ISO
Model Number: YST500
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: International Plywood Case
Delivery Time: 30 Days
Payment Terms: T/T, L/C
Supply Ability: 15 Sets / Month

500kg Package Test Transportation Shaker Table For Loose Load Vibration Testing

Description
Payload: 500 Kg Table Size: 1200 X 1500
Adjustable Frequency: 2~5Hz(120~300)RPM Fixed Amplitude: 1 Inch (25.4MM)
Vibration Pattern: Rotation, 30° Unbalance Vibration(asynchronous) Power Supply: AC 380V±10% 50/60Hz
Name: Rotary (Synchronous) Motion Transportation Simulators For 500kg Package Test
High Light:

Package Test Transportation Shaker Table

,

Shaker Table For Loose Load

,

500kg Package Shaker Table

500kg package test transportation shaker table for loose load vibration testing



Transportation Simulators



Packaged-products must withstand vibration and impact dynamic energy while being transported. Mechanical shakers are a low-cost testing equipment option for challenging the integrity of your packaging designs. LABTONE Mechanical Shakers comply with repetitive shock requirements as referenced in industry-standard testing specifications including ASTM, ISTA, ISO, and MIL-STD.



Transportation Simulators Capabilities



  • Table Size(mm): 1200 x1500
  • Frequency range: 2-5Hz(120~300)RPM
  • Fixed Displacement: 1inch (25.4mm)
  • Test Motions: Rotary (Synchronous)
  • Maximum payload: 500 kg

Transportation Simulators Features

  • Precise digital display for the vibration frequency​
  • Synchronous low noise wide belt drive mechanism
  • Guide Rail type fixture for specimen, easy to operate
  • Heavy channel iron base equipped with damper rubber makes the machine easy to install, having large loading capacity, ensuring stable running.
  • Rotational Vibration method complies with the international test standard
  • Suitable for toys, electronics, furniture, gifts, porcelain, packaging industries for packaging transportation simulation test.

Transportation Simulators Specifications



Model YST100 YST200 YST500 YST1000 YST2000

Max Payload(kg)
100 200 500 1000 2000
Table Size(mm)

1000x1200 1200x1200 1200x1500 1500x1500 1500x1500
Frequency Range 2~5Hz(120~300)RPM
Displacement 25.4mm Fixed
Test Motions Rotary (Synchronous)
Power Supply AC220V±10% 50Hz 3-phase 380V±10% 50Hz
































Company profile:



Labtone Test Equipment Co., Ltd. is a +15 year China manufacture of reliable, cost-effective equipment. Our superior products mainly include Vibration Test Systems, Shock Test Systems, Bump Test Systems, Drop Tester, Packaging Transportation Simulators, and Combined Environmental Test Chambers.



Labtone started business in 2002 in a plant located in Shenzhen and moved to our new, expanded 6,000 square meter facility in Dongguan, Guangdong in 2015. Today, our products are found around the world in electronics, automotive, aerospace, telecommunication, optoelectronics instrument and industrial machinery applications. Our experience and commitment to new product development have resulted in products that are easy to use, accurate and designed for decades of service.



Labtone products carry a one-year(12months) warranty. We provide comprehensive factory services and supports, technical literature, manuals and guides as well as having qualified staff and experts to solve your problems.

We sincerely invite you to visit our factory.





Transportation Simulators Services:

Presales

  • Technical consultation: test method, laboratory planning and suggestion.
  • Equipment selection: selection scheme, FAQ.
  • Product testing scheme.

In-Sales

  • Customer communication and progress report.
  • Guidance for pre-installation preparation, equipment commissioning and test run.
  • Calibration (when Third Party’s verification is required).

After-Sales

  • Technical training: operation of equipment, daily maintenance, common fault diagnosis and troubleshooting.
  • Scheduled on-site service: Detection of problem as soon as possible in order to eliminate equipment and anthropogenic hazards. This is to ensure long term and stable equipment operation as well as delivery of latest technical information.
  • Technical support: special paid services are provided according to the customer’s needs.

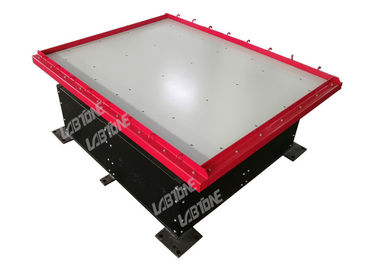

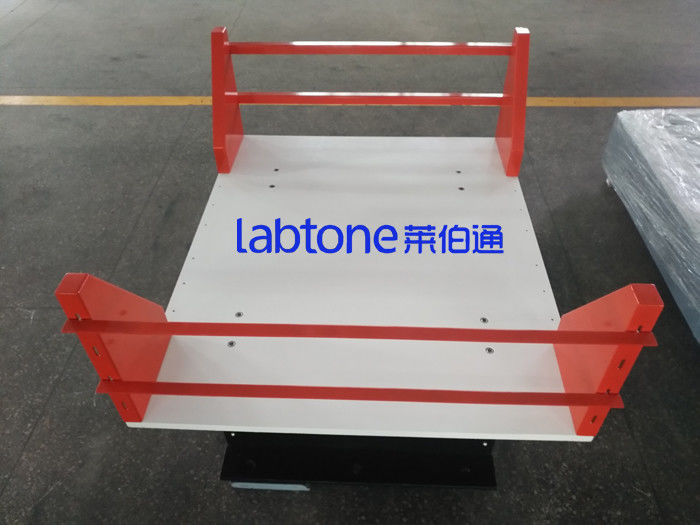

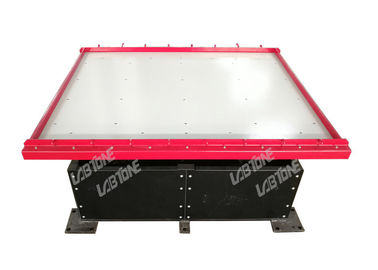

Detailed Picture




500kg Package Test Transportation Shaker Table For Loose Load Vibration Testing 0500kg Package Test Transportation Shaker Table For Loose Load Vibration Testing 1

500kg Package Test Transportation Shaker Table For Loose Load Vibration Testing 2500kg Package Test Transportation Shaker Table For Loose Load Vibration Testing 3
