Battery Vibration Test System Comply With UN38.3 IEC62133 8G Acceleration

Battery Vibration Test System Comply With UN38.3 IEC62133 8G Acceleration
Battery Vibration Test System Comply With UN38.3 IEC62133 8G Acceleration
Battery Vibration Test System Comply With UN38.3 IEC62133 8G Acceleration Battery Vibration Test System Comply With UN38.3 IEC62133 8G Acceleration Battery Vibration Test System Comply With UN38.3 IEC62133 8G Acceleration Battery Vibration Test System Comply With UN38.3 IEC62133 8G Acceleration

Large Image :  Battery Vibration Test System Comply With UN38.3 IEC62133 8G Acceleration

Product Details:
Place of Origin: Dongguang, China
Brand Name: LABTONE
Certification: CE / ISO
Model Number: EV206
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Case with Vacuum Packing
Delivery Time: 45 Working Days
Payment Terms: T/T, L/C
Supply Ability: 15 Sets / Month
Contact Now

Battery Vibration Test System Comply With UN38.3 IEC62133 8G Acceleration

Description
Sine Force: 600 Kg Max. Velocity: 200 Cm/s
Maximum Displacement: 50 Mm Moving Element Mass: 6 Kg
Payload: 200 Kg Power Amplifier: 3-phase AC 380V 50Hz
Max. Acceleration: 100 G
High Light:

UN38.3 Vibration Test System

,

IEC62133 Vibration Test System

,

8G Acceleration Vibration Test Machine

Battery Vibration Test System Comply with UN38.3 IEC62133 8G Acceleration



Vibration Test Machine Applicable Battery Test Standards: IEC 62133, EN 50604, UN 38.3


Vibration Test Machine Applicable Industries: Automotive, Electronics, Aerospace, Vessel, Telecommunication, Photoelectronics, Instrument etc.





Vibration Test Machine Configuration and Specifications



Item Configuration Qty.
1. Vibration Shaker
  Electromagnetic vibration generator VG600-50 1 set
  Cooling blower (including silencer) BL-600 1 set
  Automatic centering system of armature 1 set
  Head Expander VT640 1 pc
2. Power Amplifier
  Digital switch power amplifier Amp6k 1 set
3. Vibration controller (integrated to the controll cabinet)
  Master unit of digital vibration controller 1 set
  System acceleration sensor 1 pcs
  Control computer 1 set
  Control software installation disc 1 set
4. Attached accessories
  Extension cable and duct hose 1 set
  Operation instructions, inspection report, certificate, maintenance manual, etc. 1 set
  Attached special tools 1 set
  Vibration press rod / holddown strip fixture 1 set







Model EV206
Vibration Generator VG300/50
Frequency(Hz) 2-3000
Max Exiting Force(kg.f) 600
Max. Displacement (mmp-p) 50
Max. Acceleration(g) 100
Max. Velocity(cm/s) 200
Payload(kg) 200
Armature Mass(kg) 6
Armature Diameter(mm) φ200
Cooling Method Air Cooling
Vibration Generator Weight(kg) 920
Vibration Generator Dimension L*W*H(MM) 800*600*710
Power Amplifier Amp6k
Cooling Method Forced Air Cooling
Power Amplifier Weight(kg) 320
Power Amplifier Dimension L*W*H(MM) 800*550*1250
Utility
Requirements		 3-phase AC380V ±10% 50Hz
Aggregate Capacity(KW) 20


Vibration Test Machine simulates the vibration environment under the laboratory condition, and test the impact strength as well as reliability of various vibration test applications. In the laboratory, with the aid of vibration testing system, model simulation of reproduction of sinusoidal, random, resonant search and dwell, classical shock and road simulation, etc. can be achieved. It is essential for product quality assurance, new product research and development.





Features:



  • Rugged suspension system and linear motion guiding, strong carrying capacity, good guiding functions, high stability
  • Load center airbag has high static stiffness and low dynamic stiffness, strong carrying capacity, perfect performance on amplitude variation
  • High efficiency D class power switching, 3-sigma peak current, provide finest power consumption and minimize harmonic distortion
  • Quick self-diagnosis with safety interlock, high safety reliability
  • Airbag shock isolation device for vibration platform without the need of additional foundation, perfect reproduction of vibrational wave and reduce vibration transmittance
  • Provide horizontal and vertical expansion platform for different application
  • Simple controller operation





Use Scenarios



  • Qualification testing of automotive parts and systems, including industry standards like ISO/TS 16949, Squeak and Rattle tests, and Road Load Data applications
  • Electronic assembly and computer equipment testing
  • Avionics and military hardware testing, such as Mechanical Environmental Tests AECTP 400, ISO 9000, MIL-STD and AS9000 standard tests
  • Telecommunication and satellite component testing
  • General stress screening, including ISO 5344, HALT, ALT and HASS
  • Product and package testing, such as ISTA and ASTM 4169 tests
  • Shock test applications, including Shock Response Spectrum (SRS)
  • Environmental testing with AGREE chambers, Combined Environmental Reliability Test (CERT) and others



Product Details

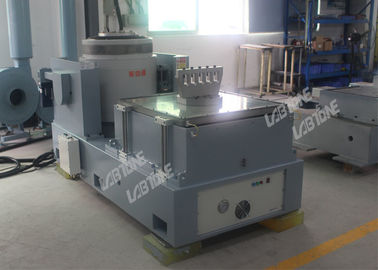

Battery Vibration Test System Comply With UN38.3 IEC62133 8G Acceleration 0

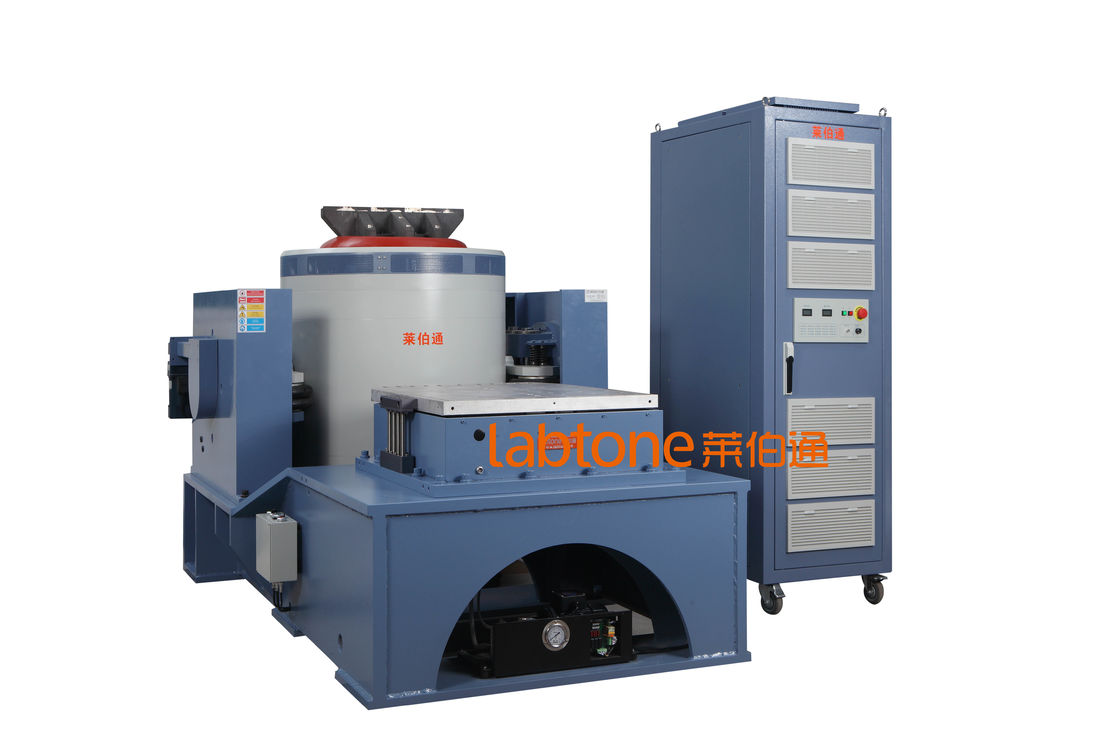

Battery Vibration Test System Comply With UN38.3 IEC62133 8G Acceleration 1

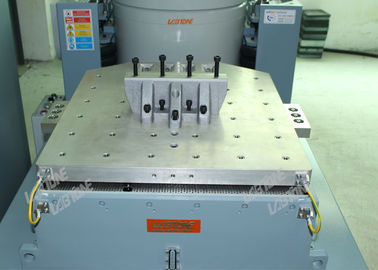

Battery Vibration Test System Comply With UN38.3 IEC62133 8G Acceleration 2
