Product Details:
|
| Product Name: | Simulate Transport Vibration Test | Table Size: | 1200 X 1200 |
|---|---|---|---|
| Frequency: | 2~5Hz(120~300)RPM | Amplitude: | 1 Inch (25.4mm) Fixed |
| Test Motions: | Rotary | Power Supply: | AC 220V±10% 50Hz |
| Payload: | 200 Kg | ||
| High Light: | ISTA Vibration Testing Machine,200kg Payload Vibration Testing Machine,AC220V Vibration Testing Equipment |
||

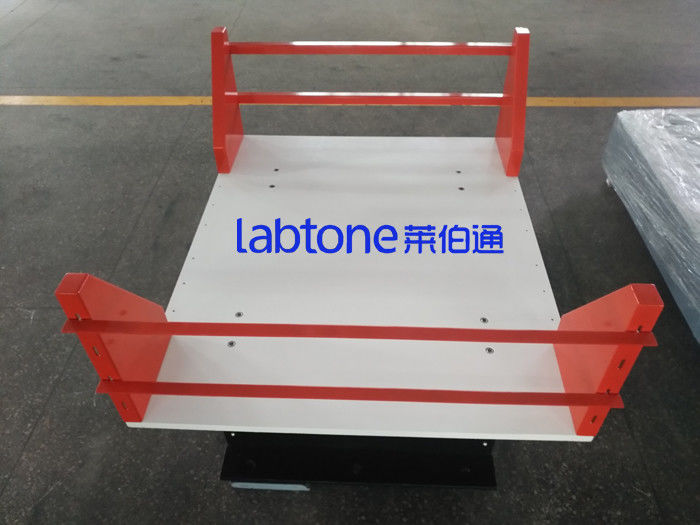

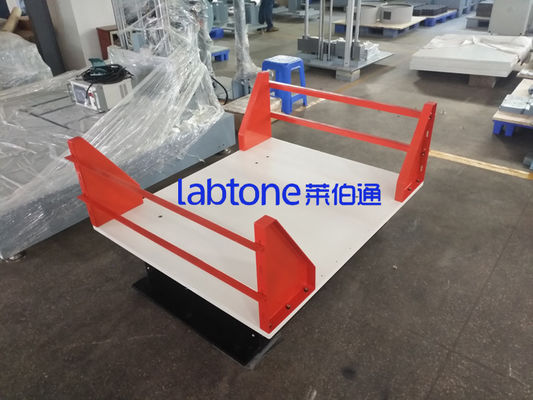

Transport Simulation Vibration Testing Machine For ISTA 1A 2A Package Testing
Vibration Test Machine Product Description
Rotary Vibration Test Machine is used in laboratory to simulate the truck transportation
situation on different road conditions. The purpose is to inspect and estimate the
performance of packaging in such conditions.
Mainly used in repeating impact, unloading or jump test that comply to ISTA, ASTM, TAPPI,
ISO MIL-STD, FED-STD, UN, DOT and other industrial and government standards.
Frequency range is 2-5Hz with fixed displacement of 1 inch (25.4 mm) and maximum
acceleration of 1.25 G.
YST series vibration tester adopts eccentric cam principle to achieve rotation (synchronous)
vibration mode.
Vibration Test Machine Specifications
| Model | YST100 | YST200 | YST500 | YST1000 | YST2000 |
|
Max Payload(kg) |
100 | 200 | 500 | 1000 | 2000 |
|
Table Size(mm) |
1000x1200 | 1200x1200 | 1200x1500 | 1500x1500 | 1500x1500 |
|
Frequency Range |
2~5Hz(120~300)RPM | ||||
|
Displacement |
25.4mm Fixed | ||||
|
Test Motions |
Rotary (Synchronous) | ||||
| Power Supply | AC220V±10% 50Hz | 3-phase 380V±10% 50Hz | |||
Vibration Test Machine Features
Vibration Test Machine Meet Test Standard
Labtone Packing Details
Products are covered with air bubble film before put them into the wooden case,which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless,moisture corrosion, good transparency etc
