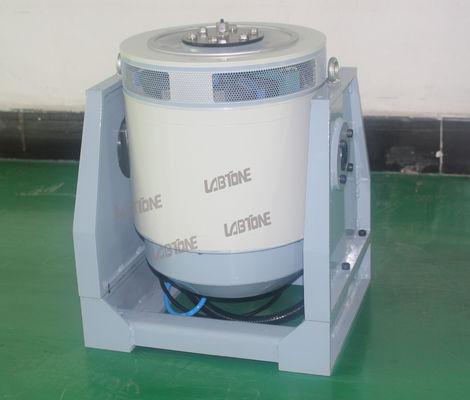

Small Shaker Vibration Tester For PCB Board And Other Electric Products

Small Shaker Vibration Tester For PCB Board And Other Electric Products
Small Shaker Vibration Tester For PCB Board And Other Electric Products

Large Image :  Small Shaker Vibration Tester For PCB Board And Other Electric Products

Product Details:

Place of Origin: Dongguang, China
Brand Name: LABTONE
Certification: CE / ISO
Model Number: EV101

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Plywood Case with Vacuum Packing
Delivery Time: 30 Working Days
Payment Terms: T/T, L/C
Supply Ability: 15 Sets / Month
Detailed Product Description
Rated Sine Force: 1000 N (100kg.f) Frequency Range: 1-6000Hz
Max. Acceleration: 65 G Max. Amplitude: 25 Mm
Max. Velocity: 1.5 M/s Machine Dimension: 400L X 360D X 470H Mm
High Light:

PCB Board Vibration Tester

,

1000N Vibration Tester

,

6000Hz Vibration Testing Machine



Small Shaker Vibration Tester For PCB Board And Other Electric Products





Introduction to Small Vibration Tester:



With light weight, small volume, convenient to move, ET series standard vibration table is widely used in the acceleration sensor calibration; vibration test, fatigue test and mechanical impedance test of micro parts; at the same time, the ET series can also be used for teaching and scientific research and laboratory.

Vibration test is a process of exciting or shocking some part or device to observe its reaction in real environment. Vibration test is widely applied in many fields, ranging from circuit board, airplane, ship, rocket, missile, automobile, household appliance and other industrial products.

Labtone can offer you the whole vibration and testing proposal, and provide you with the quality certificates of products according to national and international standards, including GB, GJB, UL, JIS, DIN, ISO, BS, MIL, IEC and ASTM standards.





 Features:

  • Apply to high precision vibration meter calibration, mechanical impedance test, vibration analysis of the vibration source
  • Apply to various of sensor, electronic, electric machines and other small lightweight vibration test .
  • Apply to the basic test of vibration engineering education equipment, etc.



Specifications:



Shaker Specifications VG100-25
Peak Sine (Pk) 100Kg.f peak (1KN)
Random (RMS) 100Kg.f r.ms (1KN) @ISO5344
Shock (Pk) 200Kg.f peak (2KN) @6ms
Usable Frequency 1~6000Hz
Maximum Displacement (p-p) 25mm (1inch)
Max. velocity 1.5m/s
Max. acceleration Sine:65G (637 m/s2) ;Random:60g(588m/s2)
Vertical Load Support 100 kg
Armature Diameter Ф120 mm
Armature Weight 1.5 kg
Allowable partial force 220.N.M

Fundamental Resonance

Frequency (Bare table)

4700Hz (nom.) +/- 5%
Load Attachment Points (Standard) Stainless Steel Inserts of M6 . (7PCS)
Shaker dimensions 400L x 360D x 470H mm
Weight of Shaker About 175Kg

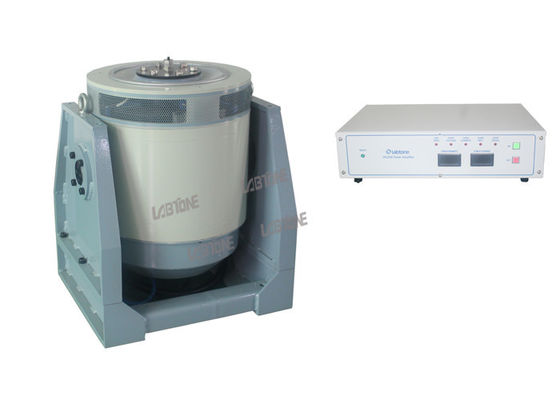

Power Amplifier Specifications PA102EF
Rated Output Capacity 1KVA
Signal to Noise Ratio Greater than 70 dB
Amplifier Efficiency Greater than 90%
Weight of Amplifier About 39x2 Kg
Field power supply 1KVA
Amplifier Overall Dimensions

440mm(W)x125mm(H)x580mm(L) 2pcs

(amplifier is divided into two parts)

Interlock Protection ●Input Over/Under Voltage ●Logic Fault ●Output Over Voltage/Current ●Control Power ●External ●Shaker Oil Pressure ●Module O/T ●Shaker Temp ●Shaker Travel





Our Services:


Pre-sales service
Technical Advisory: Testing method, laboratory planning and advice
Equipment Selection: Type-selecting scheme,FAQ
Product testing scheme
Selling service
Customer Communication,progress communication
Before installation, we will provide guidance of preparation , equipment debugging, equipment commissioning
Cooperate with measuring if need the third party verification
After-sale service
Quality assurance period for one year,lifelong maintenance.
Technical guidance
Feedback within 2 hours after get the call.
Accept OEM,Design service,Buyer lable

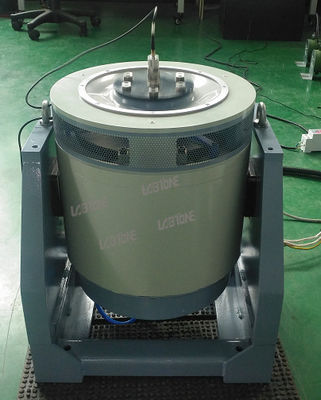

Reference picture:



Small Shaker Vibration Tester For PCB Board And Other Electric Products 0
