Vibration Test Equipment For Auto Parts Vibration Endurance Test JIS D 1601

Vibration Test Equipment For Auto Parts Vibration Endurance Test JIS D 1601
Vibration Test Equipment For Auto Parts Vibration Endurance Test JIS D 1601

Large Image :  Vibration Test Equipment For Auto Parts Vibration Endurance Test JIS D 1601

Product Details:

Place of Origin: Dongguang, China
Brand Name: LABTONE
Certification: CE / ISO
Model Number: EV206

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Case with Vacuum Packing
Delivery Time: 45 Working Days
Payment Terms: T/T, L/C
Supply Ability: 15 Sets / Month
Detailed Product Description
Max. Sine Force: 600 Kg.f (6kN) Vertical Payload: 200 Kg
Max. Acceleration: 100G Power Supply: AC 380V 50Hz
Shaker Size: 800 X 600 X 710 Mm (LxDxH) Armature Diameter: Ф200 Mm
High Light:

PCB Electrodynamic Shaker

,

600 kg.f Electrodynamic Shaker

,

6kN Electrodynamic Shaker



Vibration Test Equipment For Auto Parts Vibration Endurance Test JIS D 1601

JIS-D1601-1995.pdf







Introduction to Electrodyamic Shaker:

The purpose of vibration test may be a single vibration environmental function test or vibration durability test, or a number of vibration tests may be carried out simultaneously, such as evaluating the structural strength, evaluating the vibration environmental adaptability of instruments and equipment, and testing the dynamic characteristics of specimens, and the checking the level of process assembly and so on.



Test conditions shall generally include vibration test frequency range, vibration magnitude, vibration duration, vibration direction, vibration type (sinusoidal vibration, random vibration or mixed vibration) and test tolerance limits. Decide whether the test should be carried out in one direction(And, if necessary, the order of tests in the X,Y, and Z directions) or in three directions at the same time.



Electrodynamic Shaker Specifications:

Shaker Specifications VG600-50
Peak Sine (Pk) 600Kg.f peak (6KN)
Random (RMS) 600Kg.f r.ms (6KN) @ISO5344
Shock (Pk) 1200Kg.f peak (12KN) @6ms
Usable Frequency 1~3000Hz
Maximum Displacement (p-p) 51 mm p-p
Max. velocity 2.0m/s
Max. acceleration Sine:100G (980m/s2);Random: 70G (686 m/s2)
Vertical Load Support 260 kg
Armature Diameter Ф200 mm
Armature Weight 6kg

Fundamental Resonance

Frequency (Bare table)

2,900 Hz (nom.) +/- 5%
Load Attachment Points (Standard) 12 Stainless Steel Inserts of M8
Allowable partial force 300.N.M
Shaker dimensions 960mmL×680mmD×765mmH
Weight of Shaker About 760Kg
Specifications of Power Amplifier SA6K
Rated Output Capacity 6KVA
Signal to Noise Ratio Greater than 65 dB
Amplifier Efficiency Greater than 90%
Amplifier Overall Dimensions 610mmL×900mmD×1690mmH
Weight of Amplifier About 470Kg
Interlock Protection ●Input Over/Under Voltage ●Logic Fault ●Output Over Voltage/Current ●Control Power ●External ●Shaker Oil Pressure ●Module O/T ●Shaker Temp ●Shaker Travel
Rated Output Capacity 6KVA
Specifications of Vibration Controller
Hardware configuration

2 Analog Input Channels, 1 Drive Channel

102.4 kHz Sampling Rate, 40kHz Frequency Range,

>120dB Dynamic range ,24-bit ADC/DAC,Centralized 32-bit floating DSP processing and low-noise design ,> 90 dB Random control dynamic range , Windows O/S GUI and Ethernet connectivity, graphic interface.-20~60℃ Working Temperature Fanless Structure to Reduce the Background Noise.

Software ●Base Random ●Swept Sine ●Classic Shock
PC Configuration

● PC(i3-3.6GHz CPU 8GB 1TB 1000Mbps Ethernet port.and 4 USB port / Microsoft Windows 10/8 OS)

Microsoft Word /Excel and Adobe Acrobat are recommended as test report editors(options)Windows 10 OS and an Ethernet port.and 5 Usb2.0 port

Microsoft Word / Excel and PDF are recommended (options)

Control Accelerometers

●Mode: Lab-24110

Frequency range:1—5000Hz

Sensitivity: 30 +/- 10% pC/g

Temperature range: -40℃ to 160℃

Including1PCS length 7M, PVC "BNC-M5" low noise cable



Other models: EV203-EV220



Model EV203 EV206 EV210 EV220
Vibration Generator VG300/40 VG300/50 VG1000/50 VG2000/50
Frequency(Hz) 2-2500 2-3000 2-3000 2-2500
Max Exiting Force(kg.f) 300 600 1000 2000

Max. Displacement

(mm p-p)

38 50 50 50
Max. Acceleration(g) 100 100 100 100
Max. Velocity(cm/s) 120 200 200 200
Payload(kg) 120 200 300 400
Armature Mass(kg) 3 6 10 20
Armature Diameter(mm) φ150 φ200 φ240 φ320
Cooling Method Forced Air Cooling
Vibration Generator Weight(kg) 460 920 1100 1600
Vibration Generator Dimension L*W*H(MM) 750*555*670 800*600*710 845*685*840 1200*870*1100
Power Amplifier Amp3k Amp6k Amp12k Amp22k
Cooling Method Forced Air Cooling
Power Amplifier Weight(kg) 250 320 350 500
Power Amplifier Dimension L*W*H(MM) 800*550*1250 800*550*1250 800*550*1520 800*550*1520
Utility
Requirements
3-phase AC380V ±10% 50Hz
Aggregate Capacity(KW) 9 20 25 35





Electrodynamic Shaker Meet Standards:

MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS etc.





Applicable Industries of Electrodynamic Shaker:

Automotive electronics device, Motormeter assembly, Automobile storage battery, Automotive electric equipments, Automotivemotor, Water-soluble dielectric battery, Safety valve, Auto air conditioning compressor etc.




Features of Electrodynamic Shaker:

  • Double magnetic circuit structure to ensure high magnetic field intensity & reduce flux leakage; Special degaussing structure can reduce flux leakage to below 1 mt
  • U-type spring ,rollers and linear bearing for strong resistance of deflecting load
  • Air spring are used for vibration isolation; Vibration system work steadily even with heavy load; no need special foundation
  •  Protection devices are provided for over-thermal, over-load, over-current, over-voltage, and over-displacement of the vibration tester; Electrical network protection devices for over-voltage, under-voltage, lacking phase; Drive power , current-limiting , soft-start, over-temperature, short-current,module fault protecting
  • Able to complete sine ,random , impact environmental tests
  • This system requires voltage fluctuation, ≤±10%
  • This system requires Grounding resistance, ≤4Ω
  •  High reliability, especially suitable for long-time operation





Our Services:

Pre-sales service
Technical Advisory: Testing method, laboratory planning and advice
Equipment Selection: Type-selecting scheme,FAQ
Product testing scheme
Selling service
Customer Communication,progress communication
Before installation, we will provide guidance of preparation , equipment debugging, equipment commissioning
Cooperate with measuring if need the third party verification
After-sale service
Quality assurance period for one year,lifelong maintenance.
Technical guidance
Feedback within 2 hours after get the call.
Accept OEM, Design service,Buyer label



Detailed Pictures:

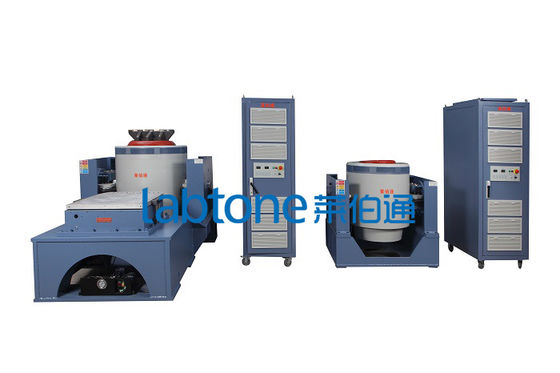

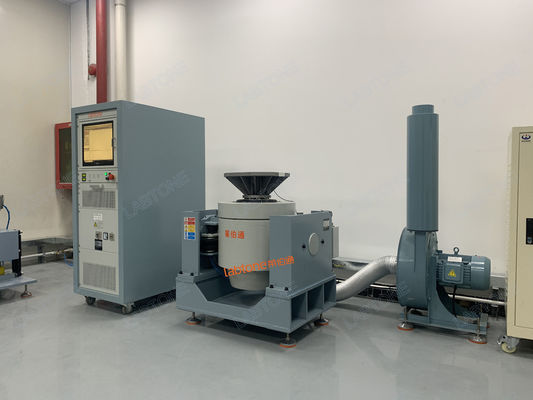

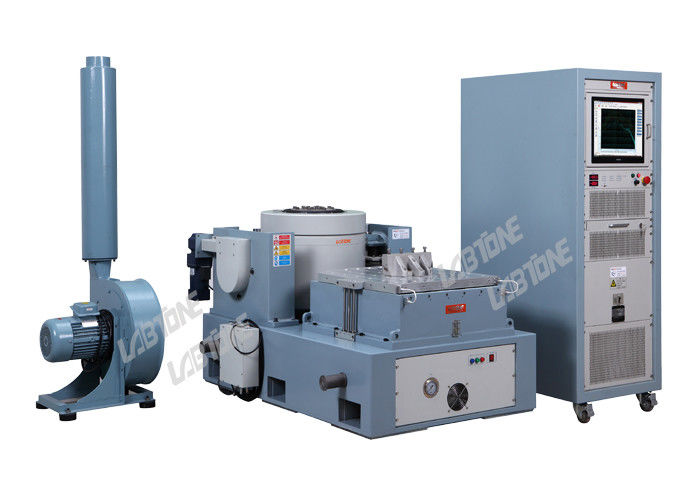

Vibration Test Equipment For Auto Parts Vibration Endurance Test JIS D 1601 0Vibration Test Equipment For Auto Parts Vibration Endurance Test JIS D 1601 1
