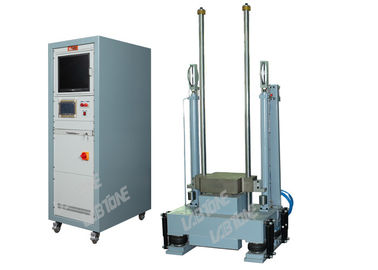

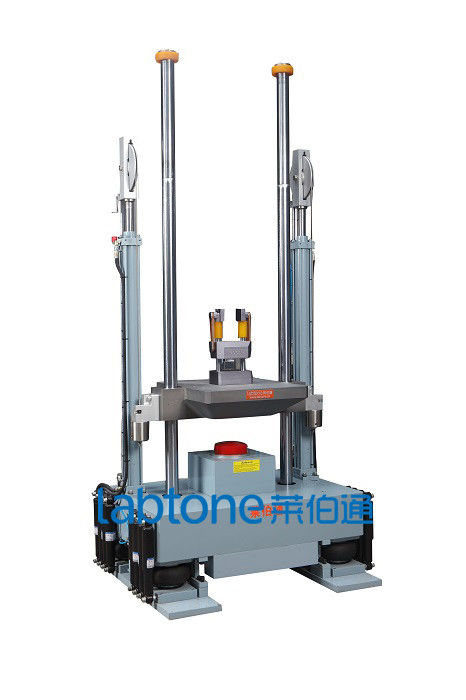

MIL-STD Standard Free Drop Shock Test Machine For Automotive Parts

MIL-STD Standard Free Drop Shock Test Machine For Automotive Parts
MIL-STD Standard Free Drop Shock Test Machine For Automotive Parts
MIL-STD Standard Free Drop Shock Test Machine For Automotive Parts MIL-STD Standard Free Drop Shock Test Machine For Automotive Parts MIL-STD Standard Free Drop Shock Test Machine For Automotive Parts

Large Image :  MIL-STD Standard Free Drop Shock Test Machine For Automotive Parts

Product Details:
Place of Origin: CHINA
Brand Name: LABTONE
Certification: CE, ISO
Model Number: SKT100
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: Negotiable
Packaging Details: International wooden case
Delivery Time: 45 working days
Payment Terms: T/T, L/C
Supply Ability: 15 Sets / Month

MIL-STD Standard Free Drop Shock Test Machine For Automotive Parts

Description
Product Name: Shock Test Equipment Max. Specimen Weight: 100kg
Max. Acceleration: Half Sine: 600G Machine Dimension: 120x105x245 Cm
Machine Weight: 2000 Kg Power Supply: 3 Phase AC 380V 50Hz
Table Size: 50*60 Cm Compressed Air: 0.5-0.8MPa
High Light:

MIL-STD Shock Test Machine

,

3PH Shock Test Machine

,

GJB1217 Shock Test Equipment



MIL-STD Standard Payload Impact Shock Test System For Home Automative Parts





Applicable Standards: GB/T2423-2008;GJB1217;GJB360.23;GJB150;GJB548;MIL-STD-202F;IEC-68-2-27;MIL-STD-883E;MIL-STD-810F;ISTA;UL.





Specification



Model SKT100
Table Size 50*60cm
Max Specimen Weight 100kg
Max Acceleration(Half Sine) 600G
Pulse Duration(Half Sine) 30-2ms
Machine Dimension 120*105*245cm
Controller Cabinet Dimension W55*D50*H80(cm)
Machine weight 3200kg
Power Supply 3PH AC380V 50Hz
Certification ISO;CE



Applicable Industries: Suitable shock test for aviation,aerospace,marine,military,consumer electronics,automobiles,home appliances and display devices.



Features:





a Free drop type shock tester using hydraulic lifting and HP fluid braking;

b Use of pneumatic-hydraulic boosting and strong friction brake to prevent secondary shock braking;

c Shock measurement device: single-channel data acquisition, simultaneous acceleration data measurement, storage, report printing, data callback, database management of two channels.

d Use of rubber module, producing a wide range of half sine pulse with arbitrary action time.

e Availability for equivalent drop test of packing boxes.






The Application of Shock Test:



Shock test is used to accurately measure the product fragility and evaluate the protective ability of product packaging.Regardless whether you want to do a boundary assessment on complete product breakage, industrial standard shock pulse or company's internal standards, we can provide the most advanced shock test systems to meet your application requirements.



Suitable shock test for aviation,aerospace,marine,military,consumer electronics,automobiles,home appliances and display devices.



By selecting different waveform generator, can perform:half sinusoidal wave, sawtooth wave, trapezoidal wave.







Please feel free to contact us come with your requirement. We will customize solution for you!



Product Details:



MIL-STD Standard Free Drop Shock Test Machine For Automotive Parts 0

Labtone  Packing & Shipping:

MIL-STD Standard Free Drop Shock Test Machine For Automotive Parts 1MIL-STD Standard Free Drop Shock Test Machine For Automotive Parts 2
