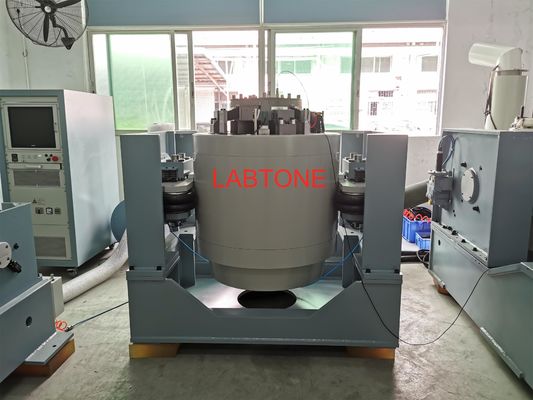

Electrodynamic Vibration Shaker System For Automotive Test NISSAN 28400NDS00

Electrodynamic Vibration Shaker System For Automotive Test NISSAN 28400NDS00
Electrodynamic Vibration Shaker System For Automotive Test NISSAN 28400NDS00
Electrodynamic Vibration Shaker System For Automotive Test NISSAN 28400NDS00 Electrodynamic Vibration Shaker System For Automotive Test NISSAN 28400NDS00 Electrodynamic Vibration Shaker System For Automotive Test NISSAN 28400NDS00 Electrodynamic Vibration Shaker System For Automotive Test NISSAN 28400NDS00

Large Image :  Electrodynamic Vibration Shaker System For Automotive Test NISSAN 28400NDS00

Product Details:
Place of Origin: Dongguang, China
Brand Name: LABTONE
Certification: CE / ISO
Model Number: EV450
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Case with Vacuum Packing
Delivery Time: 45 Working Days
Payment Terms: T/T, L/C
Supply Ability: 15 Sets / Month

Electrodynamic Vibration Shaker System For Automotive Test NISSAN 28400NDS00

Description
Max. Sine Force: 5000 Kg.f (50kN) Axis: XYZ
Vertical Payload: 500 Kg Max. Acceleration: 100G
Power Supply: AC 380V 50Hz Shaker Size: 1670mmL×1150mmD×1300mmH
High Light:

Electrodynamic Vibration Shaker System

,

50KN Vibration Shaker System

,

IEC60068 Vibration Test System





Electrodynamic Vibration Shaker System For Automotive Test NISSAN 28400NDS00





Introduction:



Vibration testing is to simulate various environmental influences of vibration encountered by products in Transportation, Installation and Use, and to determine whether a product can withstand various environmental vibrations.



The vibration modes can be divided into sinusoidal vibration and random vibration. Sine vibration test method is often used in laboratory, to simulate rotation, pulsating, volatility (in ships, aircraft, vehicles, space vehicle) on the vibration and the analysis of the product structure resonance frequency and resonance point resides validation is given priority to, it is divided into frequency sweep vibration and fixed frequency vibration, its tougher depends on the frequency range, amplitude value and test duration. The random vibration is used to simulate the evaluation of the seismic strength of the overall structure of the product and the transportation environment in the packing state, the severity of which depended on the frequency range, GRMS, test duration and axial direction





Shaker Specifications VG5000-100
Peak Sine (Pk) 5000Kg.f peak (50KN)
Random (RMS) 5000Kg.f r.ms (50KN) ISO5344
Shock (Pk) 10000Kg.f peak (100KN) @6ms
Usable Frequency 1~2500Hz
Maximum Displacement (p-p) 100mm (4 inch) intermittence, 76mm (3inch) continuous
Max. velocity 2m/s
Max. acceleration Sine:100g (980 m/s2), Random 62g(600 m/s2)
Vertical Load Support 500 kg

Body Suspension Natural

Frequency (Thrust Axis)

Less than 2.5 Hz
Armature Diameter Ф440 mm
Armature Weight 59kg

Fundamental Resonance

Frequency (Bare table)

2,400 Hz (nom.) +/- 5%

Load Attachment

Points (Standard)

16 stainless steel M10 Inserts
Stray Flux Density <10 gauss
Shaker dimensions 1670mmL×1150mmD×1300mmH
Weight of Shaker About 4600Kg
Compressed Air Requirement 0.6 Mpa
Power Amplifier Specifications LA503L
Rated Output Capacity 50KVA(120V rms / 420A rms)
Signal to Noise Ratio Greater than 65 dB
Amplifier Efficiency Greater than 90%
Amplifier Overall Dimensions 650mmL x 920mmD x 2100mmH
Weight of Amplifier About 560Kg
Interlock Protection ●Input Over/Under Voltage ●Logic Fault ●Output Over Voltage/Current ●Control Power ●External ●Shaker Oil Pressure ●Module O/T ●Shaker Temp ●Shaker Travel
Shaker controller Specifications VCS5X-2
Hardware

2 Analog Input Channels, 1 Drive Channel

102.4 kHz Sampling Rate, 40kHz Frequency Range,

>120dB Dynamic range ,24-bit ADC/DAC,Centralized 32-bit floating DSP processing and low-noise design ,> 90 dB Random control dynamic range , Windows O/S GUI and Ethernet connectivity, graphic interface.-20~60℃ Working Temperature Fanless Structure to Reduce the Background Noise.

Software ●Base Random ●Swept Sine ●Classic Shock
PC Configuration:

● ACER PC(i3-3.6GHz CPU 8GB 1TB 1000Mbps Ethernet port.and 4 USB port / Microsoft Windows 10/8 OS

Microsoft Word /Excel and Adobe Acrobat are recommended as test report editors(options)

Control Accelerometers

●Mode: Lab-24110

High sensitivity Charge accel ,10M, PVC M5 coaxial plug to BNC plug low noise cable ,1—5kHz ,30pC/g ,M5 side Conn,Ground isolation,-40℃ to 160℃





Other models: EV203-EV220



Model EV203 EV206 EV210 EV220
Vibration Generator VG300/40 VG300/50 VG1000/50 VG2000/50
Frequency(Hz) 2-2500 2-3000 2-3000 2-2500
Max Exiting Force(kg.f) 300 600 1000 2000

Max. Displacement

(mm p-p)

38 50 50 50
Max. Acceleration(g) 100 100 100 100
Max. Velocity(cm/s) 120 200 200 200
Payload(kg) 120 200 300 400
Armature Mass(kg) 3 6 10 20
Armature Diameter(mm) φ150 φ200 φ240 φ320
Cooling Method Forced Air Cooling
Vibration Generator Weight(kg) 460 920 1100 1600
Vibration Generator Dimension L*W*H(MM) 750*555*670 800*600*710 845*685*840 1200*870*1100
Power Amplifier Amp3k Amp6k Amp12k Amp22k
Cooling Method Forced Air Cooling
Power Amplifier Weight(kg) 250 320 350 500
Power Amplifier Dimension L*W*H(MM) 800*550*1250 800*550*1250 800*550*1520 800*550*1520
Utility
Requirements
3-phase AC380V ±10% 50Hz
Aggregate Capacity(KW) 9 20 25 35





Meet Standards:

MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS etc.





Applicable Industries:

Automotive electronics device, Motormeter assembly, Automobile storage battery, Automotive electric equipments, Automotivemotor, Water-soluble dielectric battery, Safety valve, Auto air conditioning compressor etc.




Features:

  • Double magnetic circuit structure to ensure high magnetic field intensity & reduce flux leakage; Special degaussing structure can reduce flux leakage to below 1 mt
  • U-type spring ,rollers and linear bearing for strong resistance of deflecting load
  • Air spring are used for vibration isolation; Vibration system work steadily even with heavy load; no need special foundation
  •  Protection devices are provided for over-thermal, over-load, over-current, over-voltage, and over-displacement of the vibration tester; Electrical network protection devices for over-voltage, under-voltage, lacking phase; Drive power , current-limiting , soft-start, over-temperature, short-current,module fault protecting
  • Able to complete sine ,random , impact environmental tests
  • This system requires voltage fluctuation, ≤±10%
  • This system requires Grounding resistance, ≤4Ω
  •  High reliability, especially suitable for long-time operation





Our Services:

Pre-sales service
Technical Advisory: Testing method, laboratory planning and advice
Equipment Selection: Type-selecting scheme,FAQ
Product testing scheme
Selling service
Customer Communication,progress communication
Before installation, we will provide guidance of preparation , equipment debugging, equipment commissioning
Cooperate with measuring if need the third party verification
After-sale service
Quality assurance period for one year,lifelong maintenance.
Technical guidance
Feedback within 2 hours after get the call.
Accept OEM, Design service,Buyer label

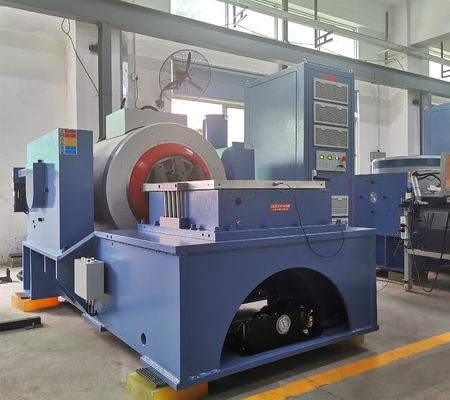

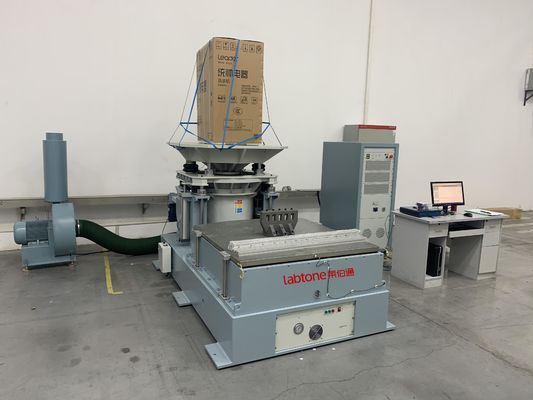

Detailed Pictures:



Electrodynamic Vibration Shaker System For Automotive Test NISSAN 28400NDS00 0Electrodynamic Vibration Shaker System For Automotive Test NISSAN 28400NDS00 1
