Payment & Shipping Terms:
|Payload:||100kg (220lbs)||Table Size:||1000 X 1200 Mm|
|Frequency:||2~5Hz(120~300)RPM||Displacement:||1 Inch (25.4MM) Fixed|
|Vibration Pattern:||Rotary||Power Supply:||AC 220V±10% 50Hz|
Rotary Vibration Test Table,
100kg Payload Vibration Test Table,
TAPPI Mechanical Shaker Table

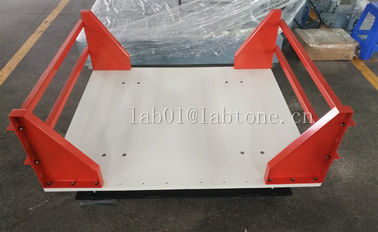

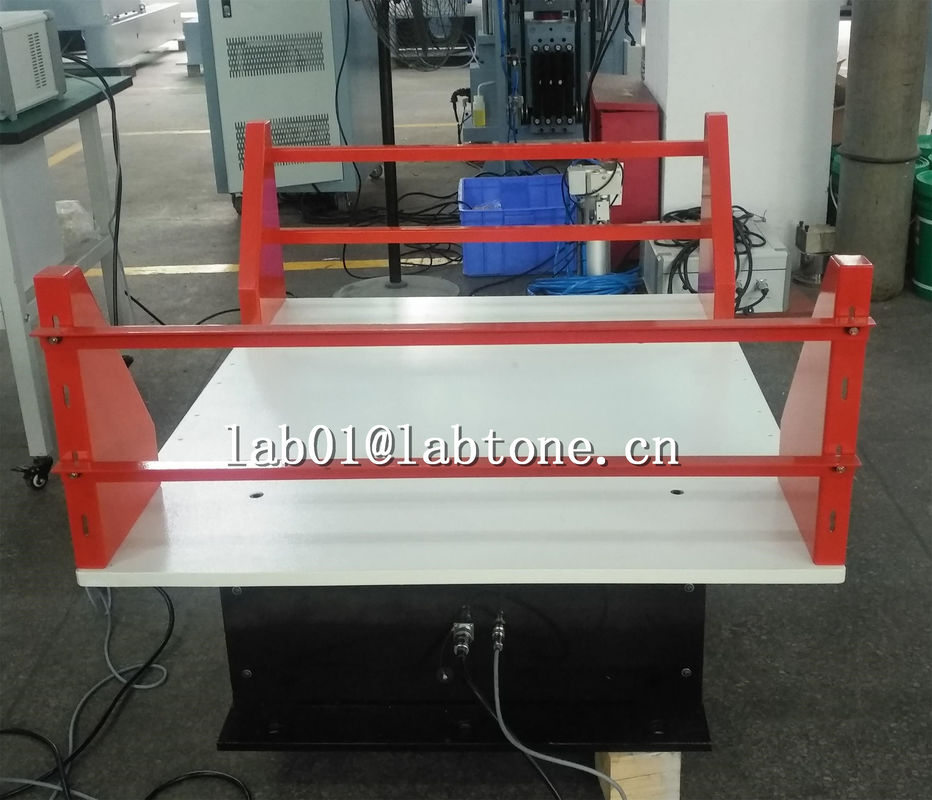

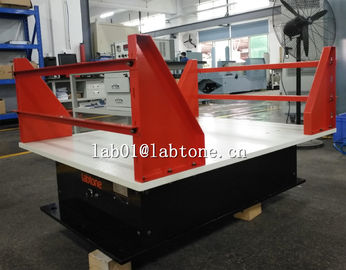

1 inch Fixed Displacement Rotary Vibration Test Table, Vibration Machine for ISTA 1A 2A
Transportation Simulation Tester is mainly used in repeating impact, unloading or jump test that comply to ISTA, ASTM, TAPPI, ISO MIL-STD, FED-STD, UN, DOT and other industrial and government standards. Frequency range is 2-5Hz with fixed displacement of 1 inch (25.4 mm) and maximum acceleration of 1.25 G.
YST series vibration platforms adopts eccentric cam principle to achieve rotation (synchronous) vibration mode.
|Test Motions||Rotary (Synchronous)|
|Power Supply||AC220V±10% 50Hz||3-phase 380V±10% 50Hz|
Meet Test Standard
Labtone Test Equipment Co., Ltd. is a +16 year China manufacture of reliable, cost-effective equipments. Our superior products mainly include: Vibration Test Systems, Shock Test Systems, Bump Test Systems, Drop Tester, Packaging Transportation Simulators, and Combined Environmental Test Chambers.
Labtone started business in 2002 in a plant located in Shenzhen and moved to our new, expanded 6,000 square meter facility in Dongguan, Guangdong in 2015. Today, our products are found around the world in electronics, automotive, aerospace, telecommunication, optoelectronics instrument and industrial machinery applications. Our experience and commitment to new product development has resulted in products that are easy to use, accurate and designed for decades of service.
Labtone products carry a one-year(12months) warranty. We provide comprehensive factory services and supports, technical literatures, manuals and guides as well as having qualified staffs and experts to solve your problems.
