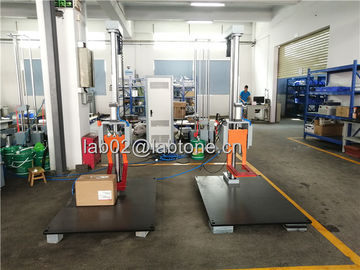

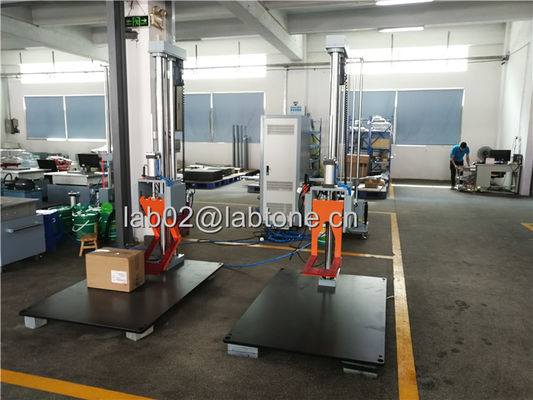

Free Fall Drop Tester For Packaging Drop Test Meets ASTMD5276 Or ISO 2248 ISTA

Free Fall Drop Tester For Packaging Drop Test Meets ASTMD5276 Or ISO 2248 ISTA
Free Fall Drop Tester For Packaging Drop Test Meets ASTMD5276 Or ISO 2248 ISTA Free Fall Drop Tester For Packaging Drop Test Meets ASTMD5276 Or ISO 2248 ISTA

Large Image :  Free Fall Drop Tester For Packaging Drop Test Meets ASTMD5276 Or ISO 2248 ISTA

Product Details:
Place of Origin: CHINA
Brand Name: LABTONE
Certification: CE ISO
Model Number: DT150
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: international wooden case
Delivery Time: 15-20 days
Payment Terms: T/T
Supply Ability: 50 Sets / Month

Free Fall Drop Tester For Packaging Drop Test Meets ASTMD5276 Or ISO 2248 ISTA

Description
Drop Height: 300-1500mm Specimen Weight: 85kg
Specimen Dimension: 800*800*800mm Drop Mode: Freedom
Machine Dimension: 1700*1200*2750mm Machine Weight: 550kg
Warranty: 12 Months Air Pressure: 0.5-0.7Mpa
Name: Free Fall Drop Tester For Packaging Drop Test Meets ASTMD5276 Or ISO 2248 ISTA
High Light:

free fall drop test equipment

,

impact test equipment

Free Fall Drop Tester For Packaging Drop Test Meets ASTMD5276 or ISO 2248 ISTA

Introduction

DT Series of drop tester is designed according to industry data and international testing standards. It complies with ISTA, ASTM, ISO, MIL-STD, JIS, and other international test standards. DT Series performs face, corner, and edge drop tests to make a complete evaluation of the performance of package and product.

This model can be installed to any location and is easy to use by anyone, You will be able to carry out drop testing for your packaging design anytime anywhere.



Specifications



Model DT150 DT200
Drop height range (mm) 300---1500 300----2000
Specimen max.weight (kg) 85 85
Specimen max. size (mm) 800*800*800 800*800*800
Drop mode Freedom
Machine Dimension (mm) 1500*1000*2150 1700*1200*2750
Machine weight (kg) 480 550
Power supply AC220V 50Hz compressed air 0.5~0.7Mpa
Standards ISO2248-72(E) GB/T4857.5 JISZ0202-87 IEC68-2-27



Functions and Features



  • Meets GB, IEC, ASTM, ISTA, ISO, JIS, TAPPI, and other industrial standards
  • Exclusive hand-held operator control
  • Precision Servo ball screw drive system
  • Steel base plate
  • Edge & corner fixture
  • Can perform surfaces, corner, and edge drops
  • Unique swing arm structural design, escape acceleration of swing arm greater than 3G.
  •  With a double-column guide, the hydraulic buffer will absorb the dynamic force of the swingarm, such that the movement is stable, reliable with low noise.
  • Self-locking screw-in lifting mechanism to prevent accidental downward glide.
  • Automatic pneumatic interlocks to prevent abnormal detachment of swing arm.
  •  Easy Maintenance for long term usage.



Free Fall Drop Tester For Packaging Drop Test Meets ASTMD5276 Or ISO 2248 ISTA 0





Free Fall Drop Tester For Packaging Drop Test Meets ASTMD5276 Or ISO 2248 ISTA 1

Free Fall Drop Tester For Packaging Drop Test Meets ASTMD5276 Or ISO 2248 ISTA 2



Packaging

Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency, etc

Free Fall Drop Tester For Packaging Drop Test Meets ASTMD5276 Or ISO 2248 ISTA 3



Free Fall Drop Tester For Packaging Drop Test Meets ASTMD5276 Or ISO 2248 ISTA 4Free Fall Drop Tester For Packaging Drop Test Meets ASTMD5276 Or ISO 2248 ISTA 5
