Drop Tester , Drop Test Machine For Mobile Products With Linear Guided Drop

Drop Tester , Drop Test Machine For Mobile Products With Linear Guided Drop
Drop Tester , Drop Test Machine For Mobile Products With Linear Guided Drop Drop Tester , Drop Test Machine For Mobile Products With Linear Guided Drop Drop Tester , Drop Test Machine For Mobile Products With Linear Guided Drop

Large Image :  Drop Tester , Drop Test Machine For Mobile Products With Linear Guided Drop

Product Details:
Place of Origin: CHINA
Brand Name: LABTONE
Certification: CE ISO
Model Number: DT275
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: international wooden case
Delivery Time: 60 days
Payment Terms: T/T
Supply Ability: 50 Sets / Month

Drop Tester , Drop Test Machine For Mobile Products With Linear Guided Drop

Description
Max Drop Height: 200 Cm Payload: 5 Kg
DUT Size: 450(W) X 450(L) Mm Machine Size: 900 X 1100 X 2299 Mm
Machine Weight: 450 Kg Power Supply: AC 220V/50HZ
Air Supply: 0.5 MPa Drop Height Setting: Touch Screen Settings
High Light:

smartphone drop test

,

free fall drop test equipment

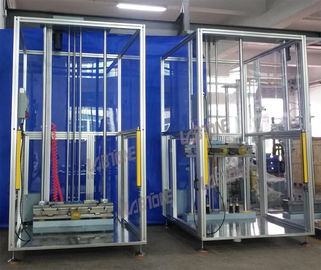

Drop Tester, Drop Test Machine for Mobile Products with Linear Guided Drop





Product description

DT275 drop tester is mainly suitable for portable products (mobile phones, smart phones, tablets, laptops, PDA, digital cameras, cameras, electronic components, etc.. The DUT can be fixed in any position, from any height to fall, to test the impact resistance of the product.


Applications


Drop test for food, medicine, cosmetics.

Drop test for Laptop computers and electrical equipment.

Drop test for packaged goods and various samples.



Specifications



Model DT275
Drop height range (mm) 250-2000
Specimen max.weight (kg)
Specimen max. size (mm) 450 x 450
Machine Dimension (mm) 900 x 1100 x 2299 mm
Machine weight (kg) 450
Power supply AC220V 50Hz compressed air 0.5Mpa
Standards  IEC 60068-2-31,  JIS C 60068-2-31





Functions and Features



This device can fix small and light weight products (light weight notebook computer, mobile phone, etc.) in any position and keep them falling from the height of 50-200cm to test the impact resistance of the test products.



(1)  Specimen Support Mechanism
The support mechanism can be set to any height, and the pen-type pneumatic cylinder device for clamping can be set to make instantaneous cutting action at the height.



(2) Sample Fixing and Falling Action
Please use the "SET" (clamping) and "RESERT" (releasing) buttons on the controller to fix the specimen.
For the DROP action, press the "DROP" button.



(3) Drop Height Setting
Use height setting pointer to set any height. The position of pointer scale can be adjusted arbitrarily.





Packaging

Vacuum package with wood case

Drop Tester , Drop Test Machine For Mobile Products With Linear Guided Drop 0




FAQ



1. Q: What is your warranty ?

  • 12 months product warranty.Free components will be provided if any performance failure occurs within 12 months caused by non-human damage.

2. Q: How-to vedio provided ?

  • Yes, if required, our engineers will record a specialize how-to video for you.

3. Q: Is the machine made in your own plant ?

  • Yes, welcome to visit our plant(factory), also we support OEM and ODM.

4. Q: What about the quality ?

  • Each instruments must be carried out 100% quality examination and test when shipping and delivery goods.
  • All of our machine are strictly according to CE & ISO standards.



Company Profile:

Labtone Test Equipment Co., Ltd. is a +15 year China manufacture of reliable, cost-effective equipments. Our superior products mainly include: Vibration Test Systems, Shock Test Systems, Bump Test Systems, Drop Tester, Packaging Transportation Simulators, and Combined Environmental Test Chambers.
Labtone started business in 2002 in a plant located in Shenzhen and moved to our new, expanded 6,000 square meter facility in Dongguan, Guangdong in 2015. Today, our products are found around the world in electronics, automotive, aerospace, telecommunication, optoelectronics instrument and industrial machinery applications. Our experience and commitment to new product development has resulted in products that are easy to use, accurate and designed for decades of service.
Labtone products carry a one-year(12months) warranty. We provide comprehensive factory services and supports, technical literatures, manuals and guides as well as having qualified staffs and experts to solve your problems.
