35000G High Speed Mechanical Shock Test Equipment 25000g@0.1ms , 35000g@0.1 ms

large.img.alt
large.img.alt

Large Image :  35000G High Speed Mechanical Shock Test Equipment 25000g@0.1ms , 35000g@0.1 ms

Product Details:

Place of Origin: CHINA
Brand Name: LABTONE
Certification: CE, ISO
Model Number: USKT30

Payment & Shipping Terms:

Minimum Order Quantity: 1SET
Price: Negotiable
Packaging Details: International wooden case
Delivery Time: 45 working days
Payment Terms: T/T
Supply Ability: 15 Sets / Month
Detailed Product Description
Table Size: 300 X 300 Mm Specimen Max Weight: 30 Kg
Shock Pulse: Half Sine Wave Acceleration Range: 20--10000 G (bare Table)
Acceleration: 35000 G (with Dual Mass Shock Amplifier) Pulse Duration Range: 0.1~30 Ms
High Light:

shock test machine

,

shock test equipment



35000G High Speed Mechanical Shock Test Equipment 25000g@0.1ms, 35000g@0.1 ms





Shock Test System

Shock tests accurately measure the fragility of products and evaluate how they respond to specific shock inputs. Shock test data is key information when determining if your product is capable of withstanding its intended distribution and use environment.


High Speed Shock Test Systems were developed to achieve the most demanding defense, aerospace, and electronics shock testing specifications. These highly specialized shock systems can generate incredible impact velocities.





Main Parameters



Model USKT30
Operating platform 300 × 300 mm
Max. load 30 KG
Peak acceleration 200-100000m/s2 (20-10000G)
Pulse duration 0.1~30 ms
Equipment dimensions 1300×1220×3380 mm
Equipment weight 2200 kg
Power & Air supply 3phase 380V±10% 50Hz,5KVA & 0.5—0.7MPa
Dual Mass Shock Amplifier - DMSA-3
Table size 160 x 150 mm
Max. load 3kg
Peak acceleration 35000G
Pulse duration 0.1—0.5ms





Main performance

  • Lifting mechanism is a precision screw. It is driven by a precision motor, and guided by two precision guide columns to ensure that the platform rise and fall smoothly. Precise shock data accuracy is ensured.
  • Impact pre-accumulation acceleration mechanism, make the impact platform greater than +1G acceleration free fall.
  • The shock base adopts the structural design of the airbag + shock absorber damper, which does not affect the floor structure during impact.
  • The machine base is designed without resonance and the impact data is accurate
  • The use of gas-liquid pressure brake friction friction brake mechanism, no secondary impact function
  • Equipped with pressure storage tank to ensure the stability of the brake mechanism and ensure the integrity of the test data
  • Single-channel data measurement acquisition, acceleration data measurement, storage, report printing, data callback, database management and other functions

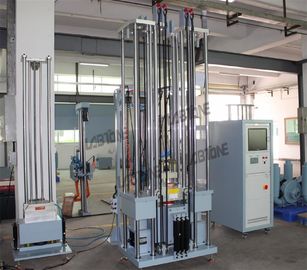

35000G High Speed Mechanical Shock Test Equipment 25000g@0.1ms , 35000g@0.1 ms 0



Warranty: 12 months from delivery, lifelong time maintainance.

After-sale service: feedback within 4-8 hours after get the call or email.

Service: OEM, ODM



Certificate: China official third-party calibration report / CE Certification





Customer Service



Service timeliness



When a fault report is received from customer〈including telephone, fax and email〉:

LABTONE will respond within 4-8 hours (working time), provide solutions and eliminate faults within 12-24 hours. After the equipment's guarantee period ended, supplier still has obligation to provide users with technical supports and after-sales services.



Presales:

  • Technical consultation: test method, laboratory planning and suggestion.
  • Equipment selection: selection scheme, FAQ.
  • Product testing scheme.

In-Sales:

  • Customer communication and progress report.
  • Guidance for pre-installation preparation, equipment commissioning and test run
  • Calibration (when Third Party’s verification is required)



After-Sales:

  • Technical training: operation of equipment, daily maintenance, common fault diagnosis and troubleshooting.
  • Scheduled on-site service: Detection of problem as soon as possible in order to eliminate equipment and anthropogenic hazards. This is to ensure long term and stable equipment operation as well as delivery of latest technical information.
  • Technical support: special paid services are provided according to customer’s needs.

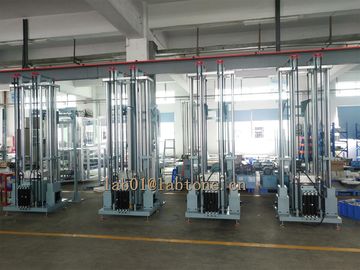

Production
