Product Details:
|
| Max Displacement: | 38 Mm | Max Force: | 300 Kg |
|---|---|---|---|
| Mass Of Armature: | 3 Kg | Diameter Of Armature: | Ф150 Mm |
| Software: | Sine, Random, Shock | Operating System: | Win 10 |
| High Light: | electrodynamic vibration shaker system,vibration testing equipment |
||

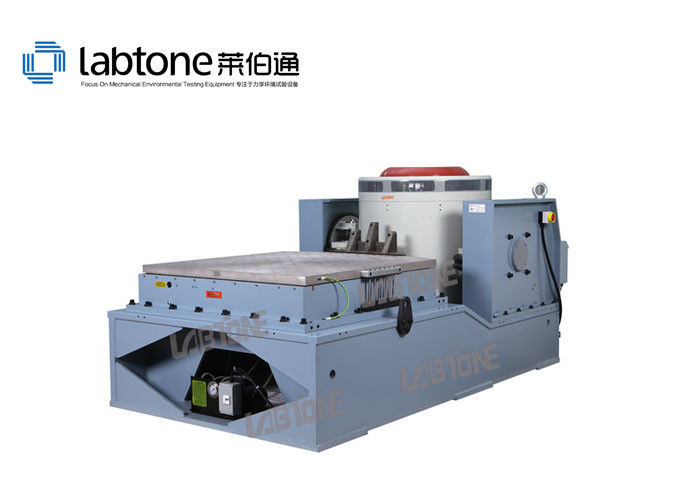

100G Electrodynamic Shaker Comply With ASTM D 4728 for Package Vibration Test
Vibration Test Systems
EV series of electromagnetic vibration testing system simulate the vibration environment under the laboratory condition, and test the impact strength as well as reliability of various vibration test applications. In the laboratory, with the aid of vibration testing system, simulations of reproduction of sinusoidal, random, resonant search and dwell, classical shock and road models, etc. can be achieved. It is essential for product quality assurance, new product research and development.
EV series of electromagnetic vibration testing system is specially designed to meet the need for long time operation. Vertical and horizontal vibrations can be achieved by the installation of vibration resistant base. The standard platform is equipped with high efficiency airbag shock isolation device, so that the vibration transmitted to the building can be minimized. There is no need for additional foundation in most of the cases.
A complete set of vibration testing system is composed of shaker, power amplifier and vibration measuring control system, in accordance with the relevant national and international standards (such as: MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS, etc.) to provide technical support for establishing product quality inspection.
Main Parameters:
Max. sine exciting force: 300kg
Max. random exciting force: 300kg
Max. shock exciting force: 600kg
Frequency range: 1-300Hz
Max. displacement: 38 mm
Max. velocity: 2.0m/s
Max. acceleration: 100g (no-loading)
Features:
Meet Standards:
MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS etc.
Applicable Industries:
Automotive, Electronics, Aerospace, Vessel, Telecommunication, Optoelectronics, Instrument etc.
Specification:
| Model | EV203 | EV206 | EV210 | EV420 |
| Vibration Generator | VG300/40 | VG300/50 | VG1000/50 | VG2000/50 |
| Frequency(Hz) | 1-2500 | 1-3000 | 1-3000 | 1-3000 |
| Max Exiting Force(kg.f) | 300 | 600 | 1000 | 2000 |
| Max. Displacement (mm p-p) | 38 | 50 | 50 | 100 |
| Max. Acceleration(g) | 100 | 100 | 100 | 100 |
| Max. Velocity(cm/s) | 120 | 200 | 200 | 200 |
| Payload(kg) | 120 | 200 | 300 | 400 |
| Armature Mass(kg) | 3 | 6 | 10 | 20 |
| Armature Diameter(mm) | φ150 | φ200 | φ240 | φ320 |
| Cooling Method | Forced Air Cooling | |||
| Vibration Generator Weight(kg) | 460 | 920 | 1100 | 1600 |
| Vibration Generator Dimension L*W*H(MM) | 750*555*670 | 800*600*710 | 845*685*840 | 1200*870*1100 |
| Power Amplifier | Amp3k | Amp6k | Amp12k | Amp22k |
| Cooling Method | Forced Air Cooling | |||
| Power Amplifier Weight(kg) | 250 | 320 | 350 | 500 |
| Power Amplifier Dimension L*W*H(MM) | 800*550*1250 | 800*550*1250 | 800*550*1520 | 800*550*1520 |
| Utility Requirements |
3-phase AC380V ±10% 50Hz | |||
| Aggregate Capacity(KW) | 9 | 20 | 25 | 35 |
Our Services:
| Service commitment and support | |
| Pre-sales service | Technical Advisory; |
| Equipment Selection; | |
| Product testing scheme. | |
| In-sales service | Close and effective communication with clients; |
| Timely and effectively solve the related issues. | |
| After-sales service | Warranty period of one year ; |
| Equipment installation and debugging; | |
| Technical training; | |
| Feedback within 2 hours after get the call. | |
| Others | Maintenance, modification and upgrade for the machine; |
| Design and producing for special fixtures and table | |
Detailed picture:
