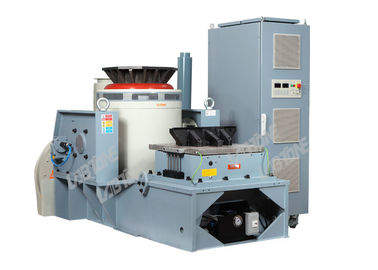

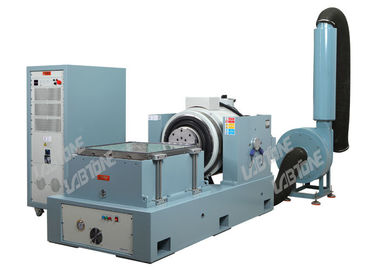

UN38.3 Vibration Table Testing Equipment Electrodynamic Shaker Table For Lithium Battery Test

UN38.3 Vibration Table Testing Equipment Electrodynamic Shaker Table For Lithium Battery Test
UN38.3 Vibration Table Testing Equipment Electrodynamic Shaker Table For Lithium Battery Test
UN38.3 Vibration Table Testing Equipment Electrodynamic Shaker Table For Lithium Battery Test UN38.3 Vibration Table Testing Equipment Electrodynamic Shaker Table For Lithium Battery Test UN38.3 Vibration Table Testing Equipment Electrodynamic Shaker Table For Lithium Battery Test

Large Image :  UN38.3 Vibration Table Testing Equipment Electrodynamic Shaker Table For Lithium Battery Test

Product Details:
Place of Origin: Dongguang, China
Brand Name: LABTONE
Certification: CE / ISO
Model Number: EV206
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: International Standard Wooden Case
Delivery Time: 45 Working Days
Payment Terms: T/T, L/C
Supply Ability: 15 Sets / Month

UN38.3 Vibration Table Testing Equipment Electrodynamic Shaker Table For Lithium Battery Test

Description
Product Name: Electrodynamic Shaker Table Max Exiting Force: 600 Kg
Frequency Range: 1-3000 Hz Max. Displacement: 50.8 Mm
Max. Velocity: 200 Cm/s Payload: 200 Kg
Power Supply: AC 3-phase 380V / 50Hz Max Acceleration: 100G
High Light:

vibration test table

,

vibration lab equipment

,

UN38.3 Vibration Table Testing Equipment



UN38.3 Vibration Testing Equipment Electrodynamic Shaker Table For Lithium Battery Test





Applicable Standards: MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS etc.




Applicable Industries: Automotive, Electronics, Aviation, Vessel, Telecommunication, Military Industry, Measuring Instrument etc.





Specifications: EV203-EV220



Model EV203 EV206 EV210 EV220
Vibration Generator VG300/40 VG300/50 VG1000/50 VG2000/50
Frequency(Hz) 2-2500 2-3000 2-3000 2-2500
Max Exiting Force(kg.f) 300 600 1000 2000
Max. Displacement (mmp-p) 40 50.8 50.8 50.8
Max. Acceleration(g) 100 100 100 100
Max. Velocity(cm/s) 200 200 200 200
Payload(kg) 120 200 300 400
Armature Mass(kg) 3 6 10 20
Armature Diameter(mm) φ150 φ200 φ240 φ320
Cooling Method Forced Air Cooling
Vibration Generator Weight(kg) 460 920 1100 1600
Vibration Generator Dimension L*W*H(MM) 750*555*670 800*600*710 845*685*840 1200*870*1100
Power Amplifier Amp3k Amp6k Amp12k Amp22k
Cooling Method Forced Air Cooling
Power Amplifier Weight(kg) 250 320 350 500
Power Amplifier Dimension L*W*H(MM) 800*550*1250 800*550*1250 800*550*1520 800*550*1520
Utility
Requirements
3-phase AC380V ±10% 50Hz
Aggregate Capacity(KW) 9 20 25 35





Features



  • Strength of the suspension system and linear motion guiding, strong carrying capacity, good guiding functions, high stability.
  • Perfect performance on amplitude variation.
  • High efficient on D Class power conversion, 3 - Sigma peak current, provide the optimization of power consumption and minimum harmonic distortion.
  • Rapid self-test diagnostics and chain safeguard, high high safety and reliability
  • Air gasbag isolation damping device realize the the vibration table with no need for special foundation. Perfect reappearance vibration waveform and the reduction of vibration transmission
  • Different application on the vertical and horizontal tables.
  • Simple operation for the controller.





Customer Services



Presales

  • Technical consultation: test method, laboratory planning and suggestion.
  • Equipment selection: selection scheme, FAQ.
  • Product testing scheme.

In-Sales

  • Customer communication and progress report.
  • Guidance for pre-installation preparation, equipment commissioning and test run.
  • Calibration (when Third Party’s verification is required).

After-Sales

  • Technical training: operation of equipment, daily maintenance, common fault diagnosis and troubleshooting.
  • Scheduled on-site service: Detection of problem as soon as possible in order to eliminate equipment and anthropogenic hazards. This is to ensure long term and stable equipment operation as well as delivery of latest technical information.
  • Technical support: special paid services are provided according to customer’s needs.
