Product Details:
|
| Max. Sine Force: | 600 Kg.f | Cooling Method: | Air Cool |
|---|---|---|---|
| Horizontal Slip Table: | Available | Max. Acceleration: | 100G |
| Max. Velocity: | 200cm/s | Max. Displacement: | 50.8 Mm |
| High Light: | vibration testing services,vibration shaker system |
||
UN38.3 Battery Test Machine, Vibration Shaker 7-200Hz 8g 1.6mm
UN_38.3 Lithium Battery Test Standard.pdf
Introduction:
Vibration Testing is performed to determine if a product can withstand the rigors of its intended use. Labtone is a professional manufacturer for high-performance vibration shaker including electrodynamic shakers and repetitive shock vibration tables.
We can customize vibration test system to meet your specific needs. Choose from a number of custom options for your electrodynamic vibration shaker.
Technical Specifications: EV203-EV220
| Model | EV203 | EV206 | EV210 | EV220 |
| Vibration Generator | VG300/40 | VG300/50 | VG1000/50 | VG2000/50 |
| Frequency(Hz) | 1-2500 | 1-3000 | 1-3000 | 1-3000 |
| Max Exiting Force(kg.f) | 300 | 600 | 1000 | 2000 |
|
Max. Displacement (mm p-p) |
38 | 50 | 50 | 50 |
| Max. Acceleration(g) | 100 | 100 | 100 | 100 |
| Max. Velocity(cm/s) | 120 | 200 | 200 | 200 |
| Payload(kg) | 120 | 200 | 200 | 300 |
| Armature Mass(kg) | 3 | 6 | 10 | 20 |
| Armature Diameter(mm) | φ150 | φ200 | φ240 | φ320 |
| Cooling Method | Forced Air Cooling | |||
| Vibration Generator Weight(kg) | 460 | 920 | 1100 | 1600 |
| Vibration Generator Dimension L*W*H(MM) | 750*555*670 | 800*600*710 | 845*685*840 | 1200*870*1100 |
| Power Amplifier | Amp3k | Amp6k | Amp12k | Amp22k |
| Cooling Method | Forced Air Cooling | |||
| Power Amplifier Weight(kg) | 250 | 320 | 350 | 500 |
| Power Amplifier Dimension L*W*H(MM) | 800*550*1250 | 800*550*1250 | 800*550*1520 | 800*550*1520 |
| Utility Requirements |
3-phase AC380V ±10% 50Hz | |||
| Aggregate Capacity(KW) | 9 | 20 | 25 | 35 |
Meet Standards:
MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS etc.
Applicable Industries:
Automotive electronics device, Motormeter assembly, Automobile storage battery, Automotive electric equipments, Automotivemotor, Water-soluble dielectric battery, Safety valve, Auto air conditioning compressor etc.
Features:
| Pre-sales service |
| Technical Advisory: Testing method, laboratory planning and advice |
| Equipment Selection: Type-selecting scheme,FAQ |
| Product testing scheme |
| Selling service |
| Customer Communication,progress communication |
| Before installation, we will provide guidance of preparation , equipment debugging, equipment commissioning |
| Cooperate with measuring if need the third party verification |
| After-sale service |
| Quality assurance period for one year,lifelong maintenance. |
| Technical guidance |
| Feedback within 2 hours after get the call. |
| Accept OEM, Design service,Buyer label |

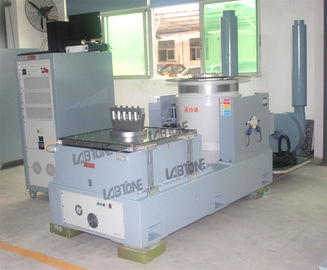

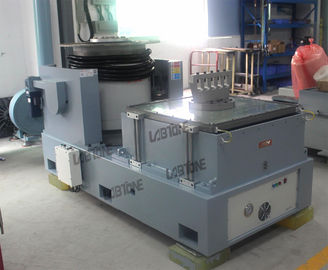

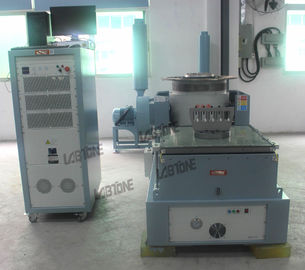

Detailed Pictures:
