Transportation Simulator Vibration Shaker Table Frequency 2-5Hz Size 1500x1500 Mm

China Transportation Simulator Vibration Shaker Table Frequency 2-5Hz Size 1500x1500 Mm supplier
Transportation Simulator Vibration Shaker Table Frequency 2-5Hz Size 1500x1500 Mm supplier Transportation Simulator Vibration Shaker Table Frequency 2-5Hz Size 1500x1500 Mm supplier Transportation Simulator Vibration Shaker Table Frequency 2-5Hz Size 1500x1500 Mm supplier

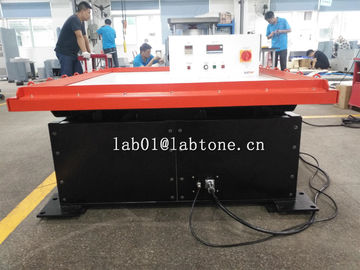

Large Image :  Transportation Simulator Vibration Shaker Table Frequency 2-5Hz Size 1500x1500 Mm

Product Details:

Place of Origin: CHINA
Brand Name: LABTONE
Certification: CE, ISO
Model Number: YST1000

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: International Plywood Case
Delivery Time: 30-35 Work Days
Payment Terms: T/T, L/C
Supply Ability: 15 Sets / Month
Contact Now
Detailed Product Description
Test Sample Weight: 1000kg Table Size: 1200 X 1500
Frequency: 2~5Hz (120~300)RPM Displacement: 1 Inch ( Fixed)
Move Motion: Rotary Power Supply: AC 380V±10% 50Hz



Transportation Simulator Vibration Table Frequency 2-5Hz Table Size 1500x1500 mm




Introduction



Transportation Simulator is used in laboratory to simulate the truck transportation situation on different road conditions. The purpose is to inspect and estimate the performance of packaging in such conditions.



Mainly used in repeating impact, unloading or jump test that comply to ISTA, ASTM, TAPPI, ISO MIL-STD, FED-STD, UN, DOT and other industrial and government standards. Frequency range is 2-5Hz with fixed displacement of 1 inch (25.4 mm) and maximum acceleration of 1.25 G.



YST series vibration tester adopts eccentric cam principle to achieve rotation (synchronous) vibration mode





Test Standard Compliance

  • ISTA 1A 1B 1C 1D 1E 2A 2B
  • ASTM D999
  • ISO 2247
  • Mil Std 810G
  • TAPPI, JIS, UN, Fed Std 101



Specifications



Model YST100 YST200 YST500 YST1000 YST2000



Max Payload(kg)

100 200 500 1000 2000
Table Size(mm) 1000x1200 1200x1200 1200x1500 1500x1500 1500x1500
Frequency Range 2~5Hz(120~300)RPM
Displacement 25.4mm (1inch) Fixed
Test Motions Rotary (Synchronous)
Power Supply AC220V±10% 50Hz 3-phase 380V±10% 50Hz

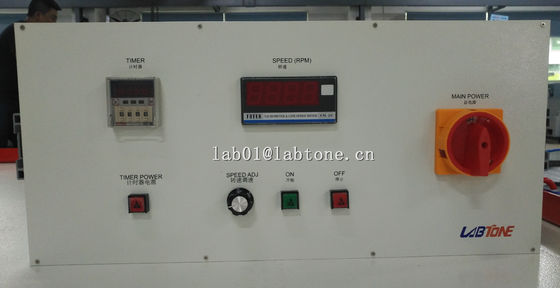

Operating mode


Transportation Simulator Vibration Shaker Table Frequency 2-5Hz Size 1500x1500 Mm


Customer Services



Presales

  • Technical consultation: test method, laboratory planning and suggestion.
  • Equipment selection: selection scheme, FAQ.
  • Product testing scheme.

In-Sales

  • Customer communication and progress report.
  • Guidance for pre-installation preparation, equipment commissioning and test run.
  • Calibration (when Third Party’s verification is required).

After-Sales

  • Technical training: operation of equipment, daily maintenance, common fault diagnosis and troubleshooting.
  • Scheduled on-site service: Detection of problem as soon as possible in order to eliminate equipment and anthropogenic hazards. This is to ensure long term and stable equipment operation as well as delivery of latest technical information.
  • Technical support: special paid services are provided according to customer’s needs.



Compnay Profile



Labtone Test Equipment Co., Ltd. is a +15 year China manufacture of reliable, cost-effective equipments. Our superior products mainly include: Vibration Test Systems, Shock Test Systems, Bump Test Systems, Drop Tester, Packaging Transportation Simulators, and Combined Environmental Test Chambers.

Labtone started business in 2002 in a plant located in Shenzhen and moved to our new, expanded 6,000 square meter facility in Dongguan, Guangdong in 2015. Today, our products are found around the world in electronics, automotive, aerospace, telecommunication, optoelectronics instrument and industrial machinery applications. Our experience and commitment to new product development has resulted in products that are easy to use, accurate and designed for decades of service.

Labtone products carry a one-year(12months) warranty. We provide comprehensive factory services and supports, technical literatures, manuals and guides as well as having qualified staffs and experts to solve your problems.

We sincerely invite you to visit our factory.

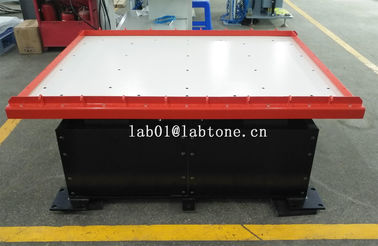

Detailed Pictures:



Transportation Simulator Vibration Shaker Table Frequency 2-5Hz Size 1500x1500 MmTransportation Simulator Vibration Shaker Table Frequency 2-5Hz Size 1500x1500 Mm
