Product Details:
|
| Name: | Mechanical Shock Test System With 100 X 100cm For 200kg Battery Test 150g @6ms | Table Size: | 100 X 100 Cm |
|---|---|---|---|
| Specimen Max Weight(kg): | 500kg | Shock Pulse: | Half Sine |
| Acceleration: | 600g (6000m/s2) | Pulse Duration Range (ms): | 1-30ms |
| High Light: | mechanical shock test,shock test machine |
||

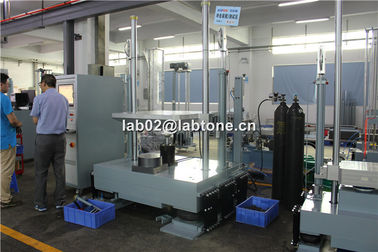

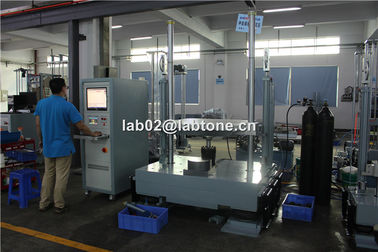

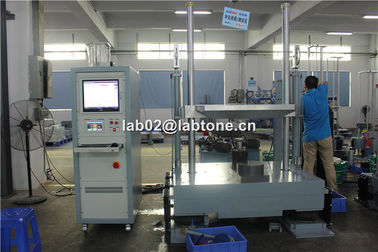

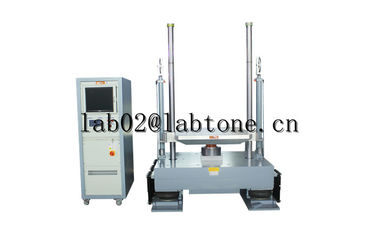

Mechanical Shock Test System With 100 X 100cm For 200kg Battery Test 150g @ 6ms
Product application
The shock testing system of SKT series are mainly applicable to shock resistance tests in such fields as electronic products, aerospace, shipping, military industry, automotive parts and transportation.SKT Series can be equipped with optional shock pulse programmers to generate a wide range of short duration half sine, sawtooth, or trapezoida. The equipment conforms to such testing specifications as GB/T2423-2008, GJB150, GJB360, GJB548, GJB1217, UN38.3, MIL-STD-202F, IEC-68-2-27, MIL-STD-810F, MIL-STD-883E, etc.
Specifications:
| Main parameters of the shock tester | |
| Table Size(mm) | 1000 × 1000 |
| Max. Specimen Weight | 200KG |
| Peak acceleration |
Half sine wave: 10 to 500G
|
| Pulse duration |
Half sine wave: 3 to 30 ms
|
|
Pulse Waveform *With Optional Programmers |
Half Sine Trapezoidal * Terminal Peak Sawtooth* |
| Acceleration allowance | ≤ 10% |
| Rate of speed change | ≤ 10% |
| Transverse ratio of table | ≤ 10% |
| Equipment dimensions | 150×130×260cm |
| Equipment weight | 4500 kg |
| Measuring system | |
| Input channels | 2 channels(hardware) |
| Sampling frequency | 192KHz |
| Pulse duration | 0.5 to 100ms |
| Max. acceleration | 5000G |
| Communication interface | USB2.0 |
| Supportive standard | ISO, UN38.3,MIL-STD-810, user defined |
| Operating system | Microsoft Win XP |
| System acceleration sensor | |
| Brand | B&W |
| Model | 23108 |
| Output mode | Charge type |
| Sensitivity | 10 pC/g |
| Frequency range | 0.5 to 12KHz |
| Acceleration range | ±2500G |
| Operating environment | -40 to +160℃ |
| Other information | |
| Power supply | AC, three phase, 380V±10% 3KVA |
| Compressed air | 0.5 to 0.8Mpa |
| Temperature | RT~40℃ |
| Humidity | 25℃, ＜ 85RH% |
| Safety |
Mean time between failure≥ 5000 hours; Continuous use of half sine waveform generator≥ 10000 times, Storage time in clean environment at normal temperature≥ 5 years. |
| Applicable standards | GB2423.5, GJB150.18, GJB360.23,UN38.3,IEC68-2-27, MIL—STD202F, MIL-STD810B, GB/T18287, etc. |
| Testing standard | JJG541-2005 |
High Perfermance Shock Test System
| Model | HSKT10 | HSKT10D | HSKT15 | HSKT30 | HSKT35 |
| Table Size(mm) | 200 x 250 | 300 x 300 | 250 x 250 | 250 x 250 | 250 x 250 |
|
Max. Payload (kg) |
10 | 25 | 10 | 10 | 10 |
| Shock Pulse | Half Sine Wave | ||||
| Acceleration Range(G) |
20~2000 (bare table) |
20~10000 (bare table) |
20~15000 (bare table) |
20~30000 (bare table) |
20~35000 (bare table) |
| Pulse Duration(ms) | 0.2~18 | 0.1~11 |
|||
