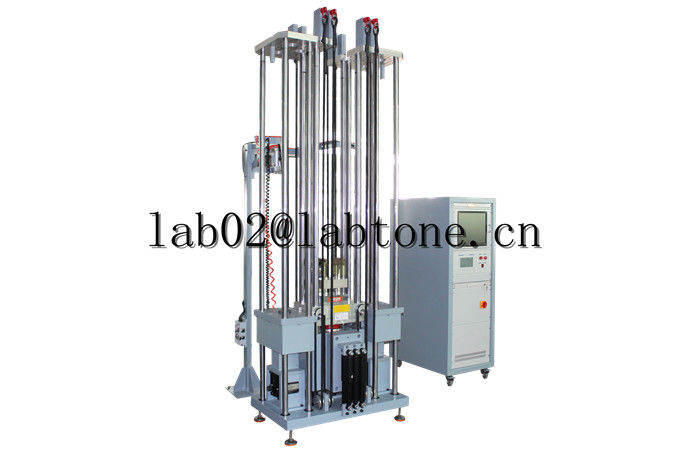

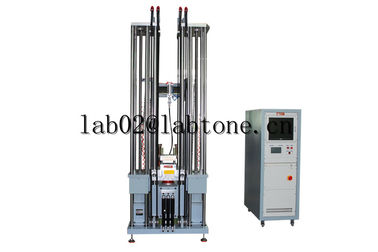

30kg Payload Impact Shock Test System With High Acceleration Up To 35000G

30kg Payload Impact Shock Test System With High Acceleration Up To 35000G
30kg Payload Impact Shock Test System With High Acceleration Up To 35000G 30kg Payload Impact Shock Test System With High Acceleration Up To 35000G 30kg Payload Impact Shock Test System With High Acceleration Up To 35000G 30kg Payload Impact Shock Test System With High Acceleration Up To 35000G

Large Image :  30kg Payload Impact Shock Test System With High Acceleration Up To 35000G

Product Details:
Place of Origin: CHINA
Brand Name: LABTONE
Certification: CE, ISO
Model Number: G-HSKT30
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: Negotiable
Packaging Details: International wooden case
Delivery Time: 45 working days
Payment Terms: T/T
Supply Ability: 15 Sets / Month

30kg Payload Impact Shock Test System With High Acceleration Up To 35000G

Description
Model: G-HSKT30 Table Size: 300 X 300
Specimen Max Weight(kg): 30 Shock Pulse: Half Sine
Acceleration: 20-35000G Dual Mass Shock Amplifier: DMSA-150
Table: 150 X 115mm Weight: 1.5KG
Max. Acceleration: 350000G
High Light:

mechanical shock test

,

shock test machine



30kg Payload Impact Shock Test System With High Acceleration Up To 35000G

The G-HSKT30 can be equipped with a dual mass shock amplifier to generate extremely high velocity changes (25m/s+) Max.acceleration capability is 35000g



Shock Test Machine Specifications

Main parameters of the shock tester
Operating platform 300 × 300 mm
Max. load 30 KG
Peak acceleration 200-100000m/s2 (20 -10000G)
Pulse duration 0.2~11 ms (Half sine wave)
Equipment dimensions 1010 mm x 1530 mm x 2750 mm
Equipment weight 1950 kg
Power & Air supply 3phase 380V±10% 50Hz,5KVA & 0.5—0.7MPa
Dual Mass Shock Amplifier
Table size 150 x 115 mm
Max. load 3 kg
Peak acceleration 35000G
Pulse duration 0.06—0.5ms
Measuring system
Input channels 4 channels
Sampling frequency 1MHz
Input mode Support voltage, IEPE, Charge signal input directly.
Coupled mode AC, DC, ICP
ADC resolution 16 bits
Dynamic range 80dB
harmonic distortion <-70dB
Signal to Noise Ratio >70dB
Pulse duration Narrow -0.1ms
Acceleration range Up to 100,000gn
Frequency accuracy 0.01%
Voltage range -10Vpeak--+10Vpeak
Supportive standard GB, GJB, MIL-STD, ISO, IEC, user defined
Shock waveform Half-sine
Communication interface USB2.0
Operating system Win7/10
Type Shock acceleration sensors
Model 3200B2T
Output mode Charge type
Sensitivity 0.05 mV/g±25%
Frequency range 0.5 to 20K Hz frequency range (±10%)
Acceleration range 50000G
Operating environment -51 to +121℃


Company profile:

Labtone Test Equipment Co., Ltd. is a +15 year China manufacture of reliable, cost-effective equipments. Our superior products mainly include: Vibration Test Systems, Shock Test Systems, Bump Test Systems, Drop Tester, Packaging Transportation Simulators, and Combined Environmental Test Chambers.

Labtone started business in 2002 in a plant located in Shenzhen and moved to our new, expanded 6,000 square meter facility in Dongguan, Guangdong in 2015. Today, our products are found around the world in electronics, automotive, aerospace, telecommunication, optoelectronics instrument and industrial machinery applications. Our experience and commitment to new product development has resulted in products that are easy to use, accurate and designed for decades of service.

Labtone products carry a one-year(12months) warranty. We provide comprehensive factory services and supports, technical literatures, manuals and guides as well as having qualified staffs and experts to solve your problems.

We sincerely invite you to visit our factory.

shock test machine Services

Presales:

  • Technical consultation: test method, laboratory planning and suggestion.
  • Equipment selection: selection scheme, FAQ.
  • Product testing scheme.


In-Sales:

  • Customer communication and progress report.
  • Guidance for pre-installation preparation, equipment commissioning and test run.
  • Calibration (when Third Party’s verification is required).


After-Sales:

  • Technical training: operation of equipment, daily maintenance, common fault diagnosis and troubleshooting.
  • Scheduled on-site service: Detection of problem as soon as possible in order to eliminate equipment and anthropogenic hazards. This is to ensure long term and stable equipment operation as well as delivery of latest technical information.
  • Technical support: special paid services are provided according to customer’s needs.
