Product Details:
|
| Model: | HSKT10 | Table Size: | 200 X 250 Mm |
|---|---|---|---|
| Specimen Max Weight: | 10 Kg | Shock Pulse: | Half Sine Wave |
| Acceleration Range: | 20-2000 G | Pulse Duration Range: | 0.2~18 Ms |
| High Light: | shock and drop testing,mechanical testing equipment |
||

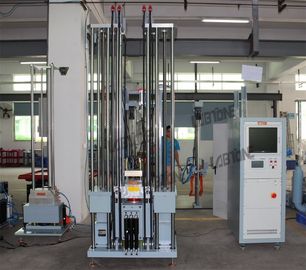

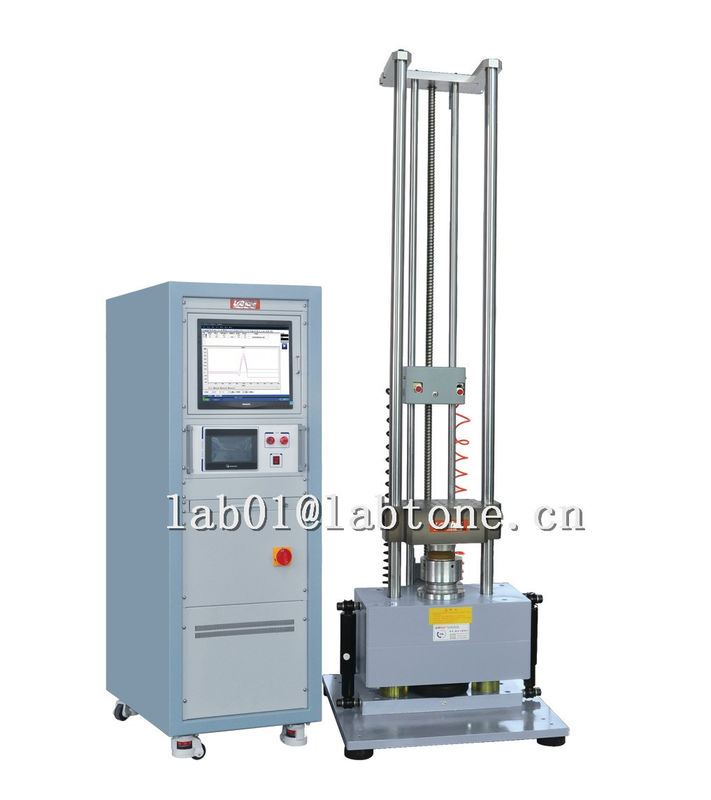

Battery Mechanical Shock Test Equipment With Half-Sine Waveform UN38.3, IEC62133
Technical Specifications
| Model | HSKT10 | HSKT30 |
| Table size (mm) | 200x250 | 300x300 |
| Shock pulse | Half sine | |
| Maximum Specimen Weight(Kg) | 10 | 30 |
| Acceleration Range(G) | 20 ~ 2000 | 20 ~ 1500 |
| Pulse Duration (ms) | 0.2~18 | 0.5~30 |
| Machine Dimension(mm) | 660x700x2380 | 720x680x1890 |
| Utility Requirements |
AC220V 50Hz 5A,Air pressure: more than 0.5Mpa | |
| Machine Weight(Kg) | 820 | 650 |
Features
Warranty:
One year limited warranty with lifetime support; extended warranty available upon request at additional cost.
After-sale service:
On site installation and trainning are avaiable at extra cost.
Technical support
Certificate: China official third-party calibration report / CE Certification
Customer Service
Service timeliness
When a fault report is received from customer〈including telephone, fax and email〉:
LABTONE will respond within 4-8 hours (working time), provide solutions and eliminate faults within 12-24 hours. After the equipment's guarantee period ended, supplier still has obligation to provide users with technical supports and after-sales services.
