Product Details:
|
| Frequency Range: | 1-2500 Hz | Max. Force: | 300 Kg.f |
|---|---|---|---|
| Shaker Size: | 750*560*670 Mm | Shaker Weight: | 460 Kg |
| Armature Mass: | 3 Kg | Power Supply: | AC 380V 50Hz |
| High Light: | vibration table testing equipment,industrial shaker table |
||
Sinusoid And Random Vibration Testing Machine Laboratory Vibration Equipment
600kg.f Vibration Test System -Technical Specifica...
Working Principle of Vibration Shaker
The working principle of the electrodynamic vibration shaker is similar to a loudspeaker whereby electrical conductor is moved by the action of electromagnetic force in the magnetic field. The force to accelerate the moving part is generated by the balance between driving current and magnetic flux. Therefore, by controlling the driving current, one can control the vibration generator.
Specifications: EV203-EV220
| Model | EV203 | EV206 | EV210 | EV220 |
| Vibration Generator | VG300/40 | VG300/50 | VG1000/50 | VG2000/50 |
| Frequency Range (Hz) | 1-2500 | 1-3000 | 1-3000 | 1-3000 |
|
Max Exiting Force (kg.f) |
300 | 600 | 1000 | 2000 |
|
Max. Displacement (mmp-p) |
40 | 51 | 51 | 51 |
| Max. Acceleration(g) | 100 | 100 | 100 | 100 |
| Max. Velocity(cm/s) | 120 | 200 | 200 | 200 |
| Payload(kg) | 120 | 200 | 200 | 300 |
| Armature Mass(kg) | 3 | 6 | 10 | 20 |
| Armature Diameter(mm) | φ150 | φ200 | φ240 | φ320 |
| Cooling Method | Forced Air Cooling | |||
| Vibration Generator Weight(kg) | 460 | 920 | 1100 | 1600 |
| Vibration Generator Dimension L*W*H(MM) | 750*555*670 | 800*600*710 | 845*685*840 | 1200*870*1100 |
| Power Amplifier | Amp3k | Amp6k | Amp12k | Amp22k |
| Cooling Method | Forced Air Cooling | |||
| Power Amplifier Weight(kg) | 250 | 320 | 350 | 500 |
| Power Amplifier Dimension L*W*H(MM) | 800*550*1250 | 800*550*1250 | 800*550*1520 | 800*550*1520 |
| Utility Requirements |
3-phase AC380V ±10% 50Hz | |||
| Aggregate Capacity(KW) | 9 | 20 | 25 | 35 |
Features:
Test requirements and model selection guide
To choose a suitable vibration test system, the most important thing is to know the exciting force required to perform the vibration test. To evaluate and calculate the exciting force, the following test specifications should be known:
Clear Testing Requirements:
Service commitment and support:
| Pre-sales service | Technical Advisory; |
| Equipment Selection; | |
| Product testing scheme. | |
| In-sales service | Close and effective communication with clients; |
| Timely and effectively solve the related issues. | |
| After-sales service | Warranty period of one year ; |
| Equipment installation and debugging; | |
| Technical training; | |
| Respond within 2 hours after get the feedback. | |
| Others | Maintenance, modification and upgrade for the machine; |
| Design and producing for special fixtures and table |

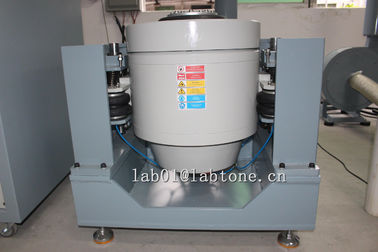

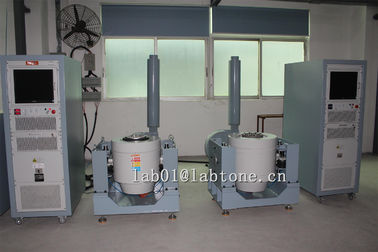

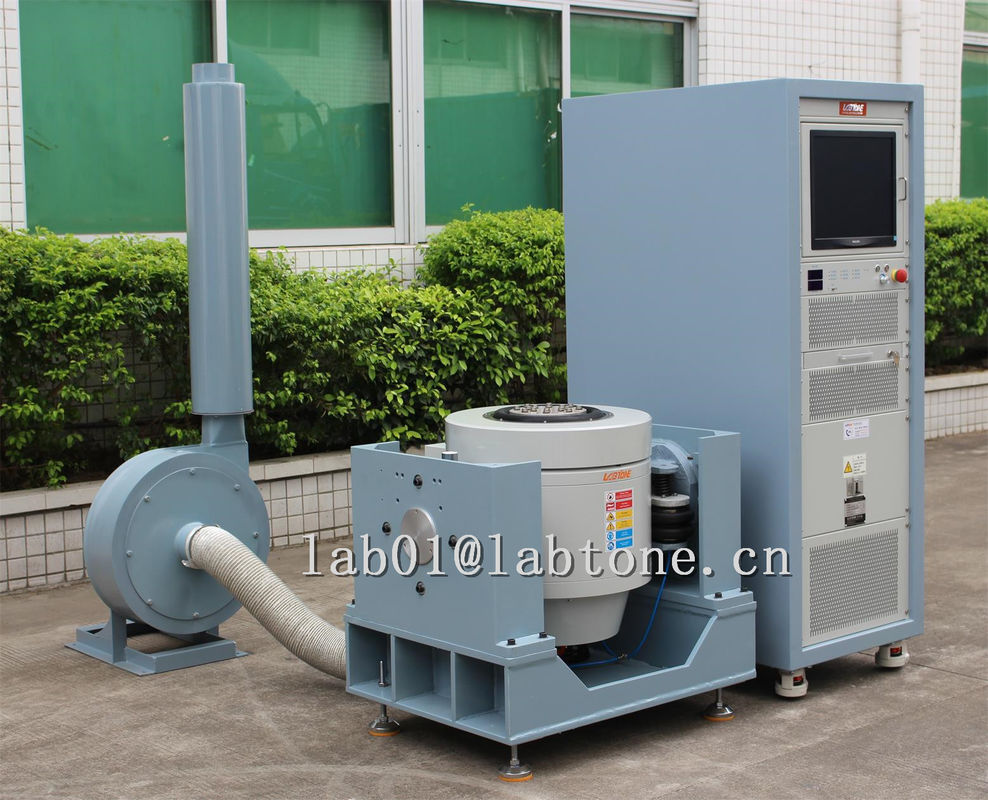

Detailed Pictures:
