Semiconductor Vibration Test Machine, Accelerated Vibration Testing

Semiconductor Vibration Test Machine, Accelerated Vibration Testing
Semiconductor Vibration Test Machine, Accelerated Vibration Testing

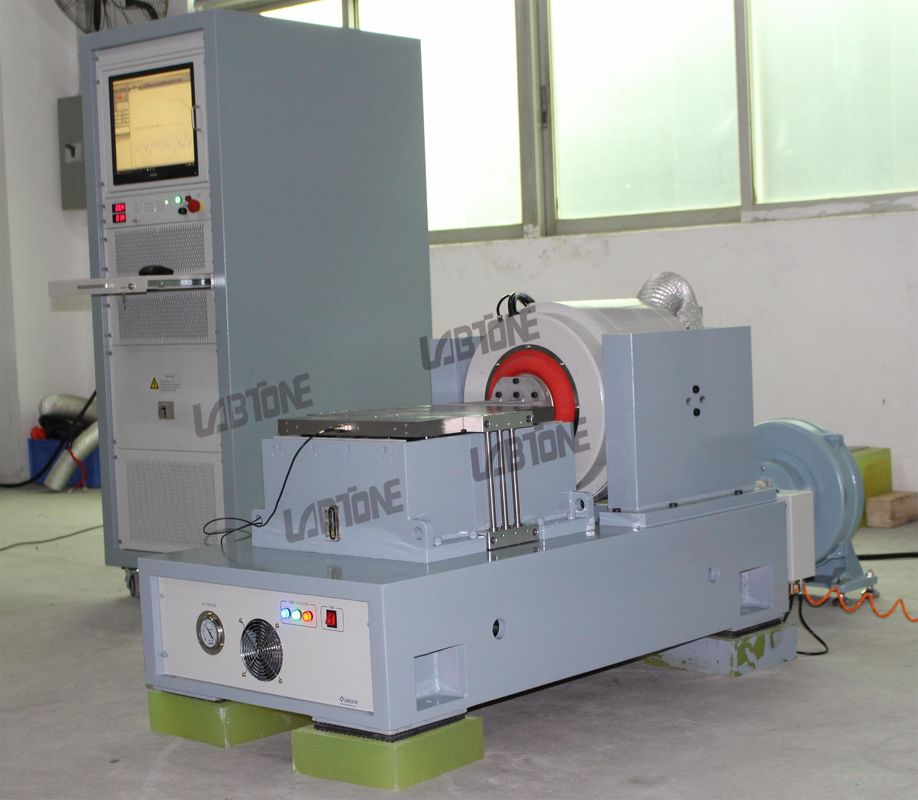

Large Image :  Semiconductor Vibration Test Machine, Accelerated Vibration Testing

Product Details:

Place of Origin: Dongguang, China
Brand Name: LABTONE
Certification: CE / ISO
Model Number: EV203

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: International standard wooden case
Delivery Time: 45 Working Days
Payment Terms: T/T, L/C
Supply Ability: 15 Sets / Month
Detailed Product Description
Product Name: Vibration Test Machine Max Acceleration: 100 G
Max Velocity: 200 Cm/s Frequency Range: 1-3000 Hz
Max Displacement: 50 Mm Power Supply: 3-phase AC 380V±10% 50Hz
Sine Force Peak: 3 KN (300 Kg.f) Max Load: 120kg
High Light:

shaker testing device

,

industrial shaker table



300kg.f Vibration Test Machine with Sine, Random, Shock, Resonant Search and Dwell





Introduction



EV series of electromagnetic vibration testing system simulate the vibration environment under the laboratory condition, and test the impact strength as well as reliability of various vibration test applications. In the laboratory, with the aid of vibration testing system, simulations of reproduction of sinusoidal, random, resonant search and dwell, classical shock and road models, etc. can be achieved. It is essential for product quality assurance, new product research and development.





Specifications: EV203



Parameters of VG300-40 electromagnetic vibration generator
Max. sine exciting force 300Kg.f peak
Max. random exciting force 300Kg.f r.ms
Max. shock exciting force 600Kg.f peak
Frequency range 1~3000Hz
Max. displacement 40 mm p-p
Max. velocity 1.8m/s
Max. acceleration 100G (980 m/s2)
Max. load (sine) F=M.A
5G (49 m/s2) 10G (98 m/s2) 20G (196 m/s2) 30G (294 m/s2)
57kg 27kg 12kg 7kg
Effective load 120 kg
Vibration isolation frequency 2.5 Hz
Diameter of armature Ф150 mm
Mass of armature 4kg
Table screw 13×M8
Flux leakage <10gauss
Allowable eccentric moment 300N.m
Shaker dimensions 880 × 590 × 1125 mm
Equipment weight About 480Kg
Amp3K digital switch power amplifier
Output power 4KVA
Output voltage 100V
Output current 30A
Amplifier efficiency ≥90%
Switching frequency 116KHz
Signal to noise ratio ≥65dB
Noise ≤70dB
Amplifier dimension 800 × 565 × 670 mm





Features:

  • Rugged suspension system and linear motion guiding, strong carrying capacity, good guiding functions, high stability;
  • Load center airbag has high static stiffness and low dynamic stiffness, strong carrying capacity, perfect performance on amplitude variation;
  • High efficiency D class power switching, 3-sigma peak current, provide finest power consumption and minimize harmonic distortion;
  • Quick self-diagnosis with safety interlock, high safety reliability;
  • Airbag shock isolation device for vibration platform without the need of additional foundation, perfect reproduction of vibrational wave and reduce vibration transmittance;
  • Provide horizontal and vertical expansion platform for different application;
  • Simple controller operation.



Warranty: 12 months from delivery, lifelong time maintainance.

After-sale service: feedback within 4-8 hours after get the call or email.

Service: OEM, ODM



Certificate: China official third-party calibration report / CE Certification





Product Detail:

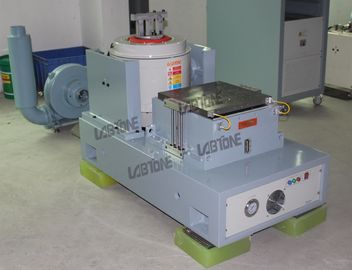

Semiconductor Vibration Test Machine, Accelerated Vibration Testing 0

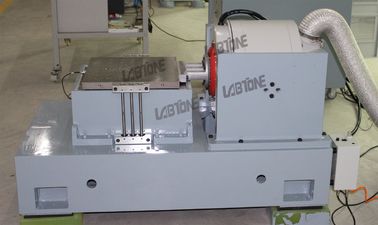

Semiconductor Vibration Test Machine, Accelerated Vibration Testing 1
