Electromagnetic Vibration Shaker For Mechanical Product Vibration Testing

China Electromagnetic Vibration Shaker For Mechanical Product Vibration Testing supplier
Electromagnetic Vibration Shaker For Mechanical Product Vibration Testing supplier Electromagnetic Vibration Shaker For Mechanical Product Vibration Testing supplier

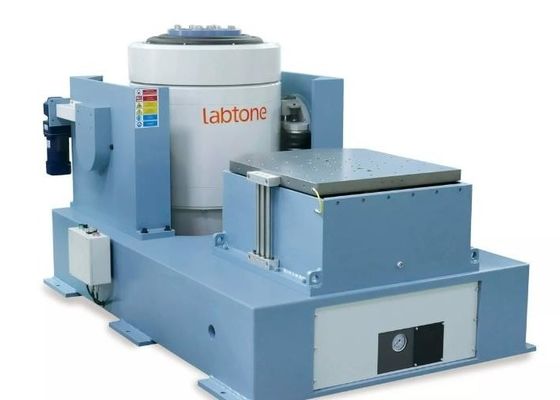

Large Image :  Electromagnetic Vibration Shaker For Mechanical Product Vibration Testing

Product Details:

Place of Origin: Dongguang, China
Brand Name: LABTONE
Certification: CE / ISO
Model Number: EV203

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: International Standard Wooden Case
Delivery Time: 45 Working Days
Payment Terms: T/T, L/C
Supply Ability: 15 Sets / Month
Contact Now
Detailed Product Description
Product Name: Electromagnetic Vibration Shaker Max Acceleration: 100 G
Max Velocity: 200 Cm/s Frequency Range: 1-2500 Hz
Max Displacement: 40 Mm Power Supply: 3-phase AC 380V±10% 50Hz
Sine Force Peak: 3kN (300 Kg.f) Max Load: 120kg

Electromagnetic Vibration Shaker For Mechanical Product Vibration Testing





Industry Standards: MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS etc.





Specifications: EV203-EV220



Model EV203 EV206 EV210 EV220
Vibration Generator VG300/40 VG600/50 VG1000/50 VG2000/50
Frequency(Hz) 2-2500 2-3000 2-3000 2-2500
Max Exiting Force(kg.f) 300 600 1000 2000
Max. Displacement (mmp-p) 38 50 50 50
Max. Acceleration(g) 100 100 100 100
Max. Velocity(cm/s) 200 200 200 200
Payload(kg) 120 200 300 400
Armature Mass(kg) 3 6 10 20
Armature Diameter(mm) φ150 φ200 φ240 φ320
Cooling Method Forced Air Cooling
Shaker Weight(kg) 480 920 1200 1600
Shaker Dimension L*W*H(MM) 800*565*670 890*750*850 890*750*850 1200*870*1100
Power Amplifier Amp3k Amp6k Amp12k Amp22k
Cooling Method Forced Air Cooling
Power Amplifier Weight(kg) 250 320 350 500
Power Amplifier Dimension L*W*H(MM) 880*590*1125 880*590*1275 880*590*1275 880*590*1275
Utility
Requirements
3-phase AC380V ±10% 50Hz
Aggregate Capacity(KW) 9 20 25 35





Applications:



  • Automotive parts and systems - qualification testing
  • Electronic assembly, computer equipment testing
  • Avionics and military hardware testing
  • Satellite component testing
  • Product and package testing
  • General stress screenin





Features:



  • Rugged suspension system and linear motion guiding, strong carrying capacity, good guiding functions, high stability;
  • Load center airbag has high static stiffness and low dynamic stiffness, strong carrying capacity, perfect performance on amplitude variation;
  • High efficiency D class power switching, 3-sigma peak current, provide finest power consumption and minimize harmonic distortion;
  • Quick self-diagnosis with safety interlock, high safety reliability;
  • Airbag shock isolation device for vibration platform without the need of additional foundation, perfect reproduction of vibrational wave and reduce vibration transmittance;
  • Provide horizontal and vertical expansion platform for different application;
  • Simple controller operation.





Our Services



Pre-Sales Service



1)Technical consultation: test method, laboratory planning and suggestion.

2)Equipment selection: selection scheme, FAQ.

3)Product testing scheme.

4)Customer communication and progress report.



After-Sales Service



1)Technical training: operation of equipment, daily maintenance, common fault diagnosis and troubleshooting.

2)Scheduled on-site service: Detection of problem as soon as possible in order to eliminate equipment and anthropogenic hazards. This is to ensure long term and stable equipment operation as well as delivery of latest technical information.

3)Technical support: special paid services are provided according to customer’s needs.





Product Detail:



Electromagnetic Vibration Shaker For Mechanical Product Vibration Testing
