ISTA Standard Free Fall Lab Drop Tester For Heavy Package Drop Testing

ISTA Standard Free Fall Lab Drop Tester For Heavy Package Drop Testing
ISTA Standard Free Fall Lab Drop Tester For Heavy Package Drop Testing

Large Image :  ISTA Standard Free Fall Lab Drop Tester For Heavy Package Drop Testing

Product Details:

Place of Origin: CHINA
Brand Name: LABTONE
Certification: ISO , CE
Model Number: DT020

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: International standard wooden case
Delivery Time: 45 working days
Payment Terms: T/T, L/C
Supply Ability: 50 Sets / Month
Detailed Product Description
Product Name: Drop Tester For Heavy Package Specimen Weight: 200kg
Specimen Dimension: 1700*1500*1200mm Drop Type: Free Drop
Machine Dimension(mm): 2100 *1700 *2800mm Machine Weight(kg): 2350kg
Drop Height: 0-1200mm
High Light:

smartphone drop test

,

impact test equipment

ISTA Standard Heavy Free Fall Lab Drop Tester For Box Package Drop Testing

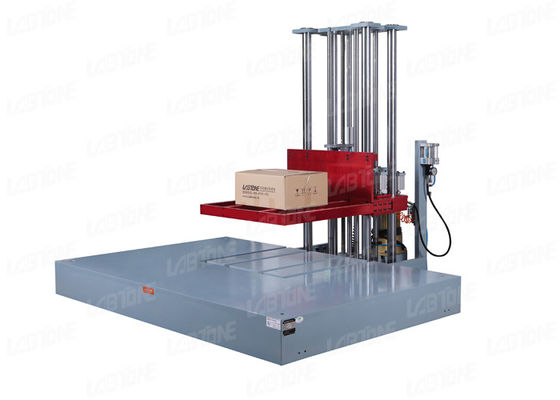

Drop Tester for Heavy Package Product Description


For large packaging with high mass, the vertical drop height during transport will be low and therefore they need drop test with relatively low drop height. Zero Height Drop Tester is mainly used for drop test of big package. It uses an E-shaped fork that can move downward quickly as a bracket and specimen is placed in balance according to test requirement(surface,edge or Corner drop test). During testing, the bracket moves downwards quickly ahead of specimen with acceleration greater than 3G to ensure the separation of bracket and specimen and achieve free fall. The standard fall distance is ranged between 2.54cm-120cm.




Specification


Model DT020 DT030 DT050
Drop height(mm) 0-1200 0-1200 0-1200
Specimen weight(KG) 200 300 500
Specimen dimension(mm) 1700*1500*1200 1900*1500*1200 1900*1500*1200
Drop type Free drop
Machine dimension(mm) 2100*1700*2800 2100*1700*2800 2100*1700*2800
Machine Weight(kg) 2350 2500 3200
Power supply/Air Supply 3 phase AC380V 50HZ (Compressed Air) 0.5~0.7Mpa
Standards

ISO2248-72(E) GB/T4857.5 JISZ0202-87 IEC68-2-27





Product Detail


ISTA Standard Free Fall Lab Drop Tester For Heavy Package Drop Testing 0





Another Series for Drop Tester

Drop Test Machine Product description



Packaging drop tester is used to measure the dropping impact incidence when the package in using, transportation and decorating.

Labtone "1G+" project strictly ensure the accuracy. Besides precision plane drop testing, it also can undertake edge and angle test to ensure the complete performance evaluation for the package.





Specification



Model DT150 DT200
Drop height range (mm) 300---1500 300----2000
Specimen max.weight (kg) 85 85
Specimen max. size (mm) 800*800*800 800*800*800
Drop mode Freedom
Machine Dimension (mm) 1500*1000*2150 1700*1200*2750
Machine weight (kg) 480 550
Power supply AC220V 50Hz compressed air 0.5~0.7Mpa
Standards ISO2248-72(E) GB/T4857.5 JISZ0202-87 IEC68-2-27







Drop Test Machine Features


  • Satisfy and even beyond GB, IEC, ASTM, ISTA and other industrial standards;
  • Can perform surfaces, corner and edge drop;
  • Precise guiding system and is driven pneumatically;
  • Unique swing arm structural design, escape acceleration of swing arm detachment greater than 3G;
  • With double column guide, hydraulic buffer absorb the force of the swing arm, the movement is stable, reliable and with low noise;
  • Self-locking screw in lifting mechanism to prevent abnormal detachment of swing arm;
  • Extensible support bracket and bottom slab.

 ISTA Standard Free Fall Lab Drop Tester For Heavy Package Drop Testing 1


Our Services



Pre-Sales Service



1)Technical consultation: test method, laboratory planning and suggestion.

2)Equipment selection: selection scheme, FAQ.

3)Product testing scheme.

4)Customer communication and progress report.



After-Sales Service



1)Technical training: operation of equipment, daily maintenance, common fault diagnosis and troubleshooting.

2)Scheduled on-site service: Detection of problem as soon as possible in order to eliminate equipment and anthropogenic hazards. This is to ensure long term and stable equipment operation as well as delivery of latest technical information.

3)Technical support: special paid services are provided according to customer’s needs.











Drop Test Machine Packaging



Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case,which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless,moisture corrosion, good transparency etc

ISTA Standard Free Fall Lab Drop Tester For Heavy Package Drop Testing 2
