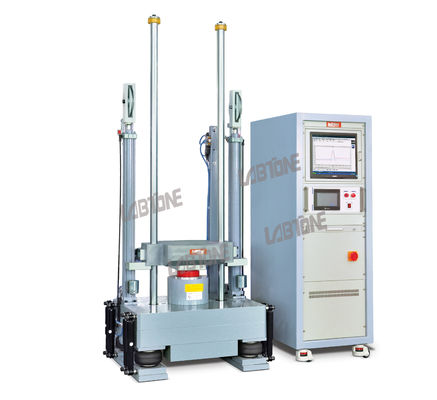

Mechanical Shock Test Equipment Applied for IEC 62281, 50g@11ms, 150@6ms

Mechanical Shock Test Equipment Applied for IEC 62281, 50g@11ms, 150@6ms
Mechanical Shock Test Equipment Applied for IEC 62281, 50g@11ms, 150@6ms Mechanical Shock Test Equipment Applied for IEC 62281, 50g@11ms, 150@6ms Mechanical Shock Test Equipment Applied for IEC 62281, 50g@11ms, 150@6ms

Large Image :  Mechanical Shock Test Equipment Applied for IEC 62281, 50g@11ms, 150@6ms

Product Details:
Place of Origin: CHINA
Brand Name: LABTONE
Certification: CE, ISO
Model Number: SKT100
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: Negotiable
Packaging Details: International wooden case
Delivery Time: 45 working days
Payment Terms: T/T
Supply Ability: 15 Sets / Month

Mechanical Shock Test Equipment Applied for IEC 62281, 50g@11ms, 150@6ms

Description
Table Size: 50 X 60 Cm Max. Specimen Weight: 100 Kg
Max. Acceleration: Half Sine: 600G Machine Dimension: 120x105x245 Cm
Controller Cabinet Dimension: W55 X D50 X H80 Cm Machine Weight: 2000 (Kg)
High Light:

shock and drop testing

,

mechanical testing equipment



Mechanical Shock Test Equipment Applied for IEC 62281, 50g 11ms, 150 6ms





Product description

Shock tests accurately measure the fragility of products and evaluate how they respond to specific shock inputs. Shock test data is key information when determining if your product is capable of withstanding its intended distribution and use environment.


High Speed Shock Test Systems were developed to achieve the most demanding defense, aerospace, and electronics shock testing specifications. These highly specialized shock systems can generate incredible impact velocities.





Technical Specifications



Model SKT50 SKT100 SKT200 SKT300 SKT500 SKT1000 SKT1500
Table size (cm) 40 x 40 50 x 60 70 x 80 100 x 100 120 x 120 150 x 150 200 x 200
Maximum Specimen Weight(Kg) 50 100 200 300 500 1000 1500
Max acceleration(G) half sine 600 600 600 500 500 300 300
saw-tooth waveform 100 100 100 100 100 100 100
square 100 100 100 60 50 50 50
Pulse Duration (ms) half sine 30~1 30~2 30~2 20~3 20~3 20~3 20~3
saw-tooth waveform 18~6 18~6 18~6 18~6 18~6 18~6 18~6
square 12~6 12~6 12~6 12~6 12~6 12~6 12~6
Machine Dimension(cm) 82x90x195 120x105x245 130x120x260 150x130x260 200x160x300 230x180x310 250x250x310
Controller cabinet Dimension(cm) W55 x D50 x H80
Machine Weight(Kg) 1050 2000 3200 4200 8500 15500 21500
Utility 3-phase AC380V 50/60Hz 0.5~0.8MPa
Requirements
Conforming standards GB/T2423-2008 GJB1217 GJB360.23 GJB150 GJB548 MIL-STD-202F IEC-68-2-27 MIL-STD-883E MIL-STD-810F ISTA UL







Applications

  •  Fragility test of products.
  •  Shock standard test of products.
  •  Fragility test for digital cameras, smart phones, tablets, mobiles, displays, small household appliances,  cosmetics, electronic parts, large-sized office machine, refrigerator and etc.
  • Shock standard test for digital cameras, smart phones, tablets, mobiles, displays, small household appliances, cosmetics, electronic parts large-sized office machine, refrigerator and etc.
  • Free drop equivalent test packaged freights



Shock test System Block Diagram



Mechanical Shock Test Equipment Applied for IEC 62281, 50g@11ms, 150@6ms 0





Company profile:



Labtone Test Equipment Co., Ltd. is a +15 year China manufacture of reliable, cost-effective equipments. Our superior products mainly include: Vibration Test Systems, Shock Test Systems, Bump Test Systems, Drop Tester, Packaging Transportation Simulators, and Combined Environmental Test Chambers.



Labtone started business in 2002 in a plant located in Shenzhen and moved to our new, expanded 6,000 square meter facility in Dongguan, Guangdong in 2015. Today, our products are found around the world in electronics, automotive, aerospace, telecommunication, optoelectronics instrument and industrial machinery applications. Our experience and commitment to new product development has resulted in products that are easy to use, accurate and designed for decades of service.



Labtone products carry a one-year(12months) warranty. We provide comprehensive factory services and supports, technical literatures, manuals and guides as well as having qualified staffs and experts to solve your problems.



We sincerely invite you to visit our factory.


Mechanical Shock Test Equipment Applied for IEC 62281, 50g@11ms, 150@6ms 1



Mechanical Shock Test Equipment Applied for IEC 62281, 50g@11ms, 150@6ms 2




Mechanical Shock Test Equipment Applied for IEC 62281, 50g@11ms, 150@6ms 3
