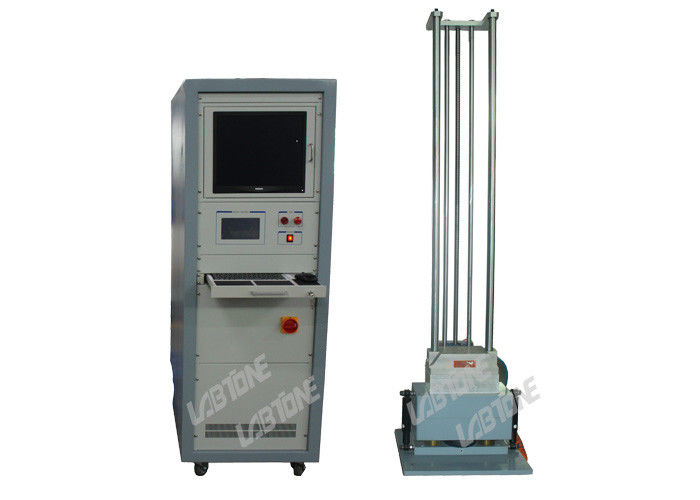

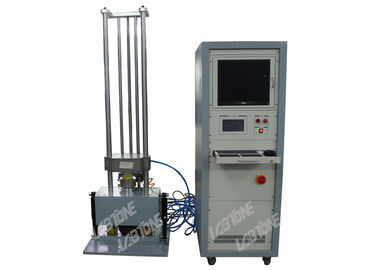

High Speed Impact Test Machine For Optical Components Impact Testing

High Speed Impact Test Machine For Optical Components Impact Testing
High Speed Impact Test Machine For Optical Components Impact Testing High Speed Impact Test Machine For Optical Components Impact Testing

Large Image :  High Speed Impact Test Machine For Optical Components Impact Testing

Product Details:
Place of Origin: CHINA
Brand Name: LABTONE
Certification: CE, ISO
Model Number: HSKT25
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: Negotiable
Packaging Details: International wooden case
Delivery Time: 45 working days
Payment Terms: T/T, L/C
Supply Ability: 15 Sets / Month

High Speed Impact Test Machine For Optical Components Impact Testing

Description
Product Name: High Speed Impact Test Machine Table Size: 300 X 300mm
Specimen Max Weight: 25kg Shock Pulse: Half Sine
Acceleration Range: 20~10000G(bare Table) Pulse Duration Range: 0.2~18ms
Max Drop Hight: 1500mm
High Light:

mechanical shock test

,

shock test equipment

High Speed Impact Test Machine For Optical Components Impact Testing





Product description



The precise-type high-acceleration shock tester can provide all half-sine short wave specification specified in JESD22-B110. To meet them, merely change different shock rubber-pad on shock seat. The wave is complete with high repeatability, able to provide user accurate test result.
Conform to different test specs such as JESD22-B110 and IEC spec.





Product Features



  • All operation accomplished automatically. Rebound brake mechanism by automatically controlled.
  • High rigid shock table.
  • Using the anvil as a vibration insulation seismic base, to reduce the vibration effect the surrounding.





Specifications





Model HSKT10 G-SKT10D
Table size (mm) 200 x200     300 x 300
Specimen max weight(kg) 10 25
Shock pulse Half-sine
Acceleration range (m/s2) 20-2000 20-10000
Pulse duration range (ms) 0.2~18 0.2~18
Max.Drop Height(mm) 1500 900
Mechine Dimension(mm) 660*700*2380 1350*1250*3300
Utility reqyurements AC220V 50Hz 5A Air pressure:more than 0.5Mpa











Service



Pre-Sales Service



1)Technical consultation: test method, laboratory planning and suggestion.

2)Equipment selection: selection scheme, FAQ.

3)Product testing scheme.

4)Customer communication and progress report.



After-Sales Service



1)Technical training: operation of equipment, daily maintenance, common fault diagnosis and troubleshooting.

2)Scheduled on-site service: Detection of problem as soon as possible in order to eliminate equipment and anthropogenic hazards. This is to ensure long term and stable equipment operation as well as delivery of latest technical information.

3)Technical support: special paid services are provided according to customer’s needs.
