|Drop Height:||300-2000mm||Specimen Weight:||85kg|
|Specimen Dimension:||800*800*800mm||Drop Mode:||Freedom|
|Machine Dimension:||1700*1200*2750mm||Machine Weight:||550kg|
|Warranty:||12 Months||Air Pressure:||0.5-0.7Mpa|
|Name:||Low Maintenance Dorp Test Machine Performs 85kg Package Test For Sony Company|
package testing services,
drop test equipment

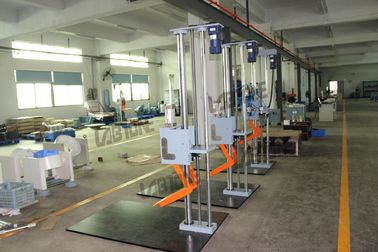

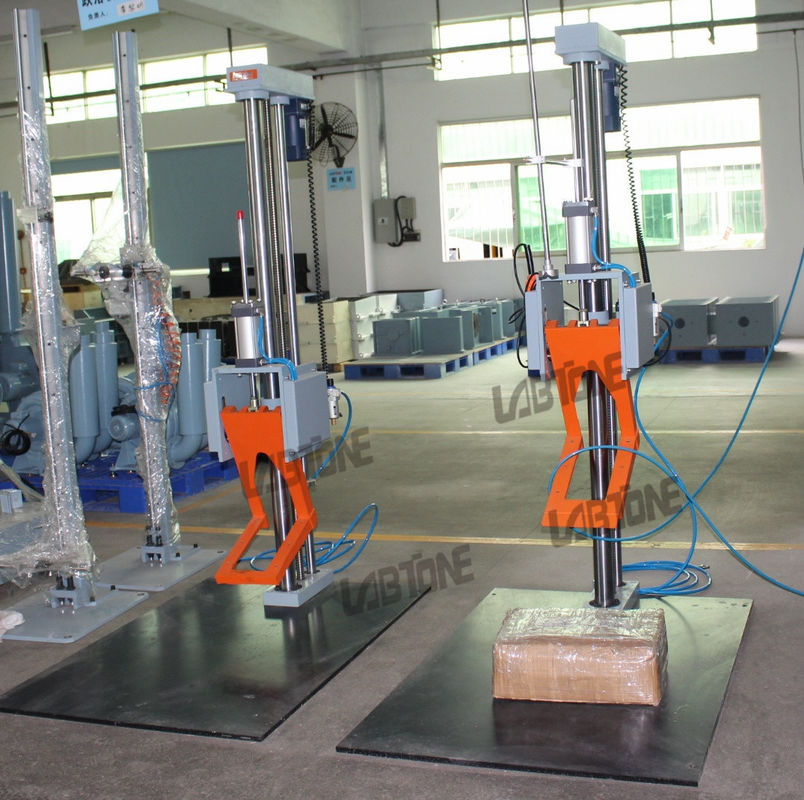

ASTM D5276 Standard Packaging Drop Test Machine With Drop Height 2 Meter
Packaging drop test is used to determine the effect of impact on the package during use, transportation, loading and unloading. The strictly designed LABTONE “1G+” ensures its accuracy. Apart from accurate plane fall test, it can also perform edge drop and corner drop test to make a complete evaluation on the performance of packaging and product.
|Drop height range (mm)||300---1500||300----2000|
|Specimen max.weight (kg)||85||85|
|Specimen max. size (mm)||800*800*800||800*800*800|
|Machine Dimension (mm)||1500*1000*2100||1700*1200*2600|
|Machine weight (kg)||480||550|
|Power supply||AC220V 50Hz compressed air 0.5~0.7Mpa|
|Standards||ISO2248-72(E) GB/T4857.5 JISZ0202-87 IEC68-2-27|
1. Satisfy and even beyond GB, IEC, ASTM, ISTA and other industrial standards.
2. Can perform surfaces, corner and edge drops.
3. Precise guiding system and pneumatical driving;

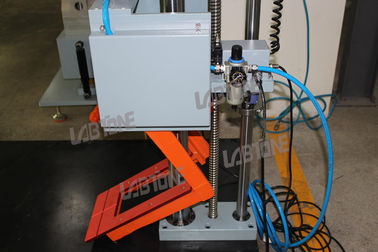

4. Unique swing arm structural design, escape acceleration of swing arm greater than 3G.;
5. With double column guide, hydraulic buffer will absorb the dynamic force of the swing arm, such that the movement is stable, reliable with low noise
6. Self-locking screw in lifting mechanism to prevent accidental downward glide.
7. Automatic pneumatic interlocks to prevent abnormal detachment of swing arm.
8. Extensible support bracket and steel base plate.
