Product Details:
|
| Model: | HSKT10 | Table Size: | 200 X 250 |
|---|---|---|---|
| Specimen Max Weight(kg): | 10 | Shock Pulse: | Half Sine |
| Acceleration: | 20-1500G | Name: | Mechanical Shock Test Equipment For Battery Safety Test With IEC62133 UN38.3 |
| High Light: | mechanical testing equipment,vibration and shock testing |
||

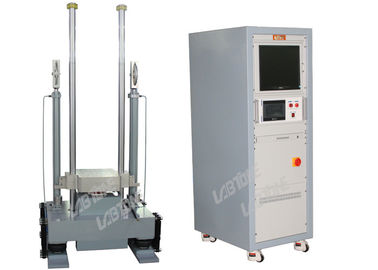

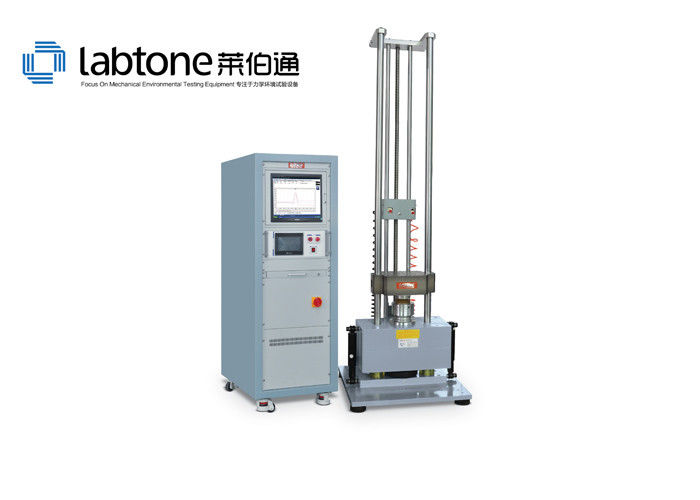

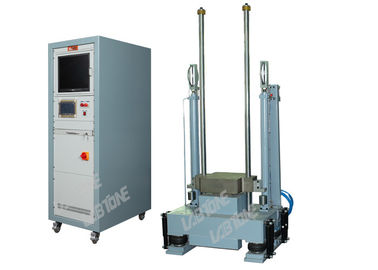

Mechanical Shock Test Equipment For Battery Safety Test With Acceleration 1500g
We ultimately recommend the most suitable system configuration for every testing application based on two important criteria:
Test report
| Acceleration (g) | Measured value | Pulse duration | Measured value | Velocity Change | Measured value | Filter ratio(KHZ) | Height (mm) |
| (g) | (ms) | (ms) | (cm/s) | (cm/s) | |||
| 30 | 31.35 | 11 | 11.1 | 205.88 | 198.69 | 3 | 105 |
| 50 | 51.65 | 11 | 11.36 | 343.14 | 349.3 | 3 | 280 |
| 100 | 112.34 | 6 | 6.72 | 374.33 | 405.23 | 3 | 430 |
| 150 | 158.95 | 6 | 6.49 | 561.5 | 561.11 | 3 | 860 |
| 500 | 527.11 | 1 | 1.19 | 311.92 | 342.63 | 2.5 | 360 |
| 1000 | 963.97 | 1 | 1.11 | 623.83 | 566.49 | 2.5 | 920 |
| 1500 | 1423.31 | 0.5 | 0.49 | 467.75 | 407.27 | 3 | 360 |
| 30 | 29.59 | 18 | 16.74 | 336.9 | 290.87 | 3 | 220 |
| 100 | 98.72 | 11 | 11.03 | 686.28 | 638.36 | 3 | 1000 |
Shock Test Machine Specifications
| Model | HSKT10 | HSKT25 |
| Table size (mm) | 200 x250 | 300 x 300 |
| Specimen max weight(kg) | 10 | 25 |
| Shock pulse | Half-sine | |
| Acceleration range (m/s2) | 20----1500 | 20----10000 |
| Pulse duration range (ms) | 0.5~18 | 0.2~18 |
| Seismic base | Pneumatic springs device | |
| Utility reqyurements | AC220V 50Hz 5A Air pressure:more than 0.5Mpa | |
Company profile:
Labtone Test Equipment Co., Ltd. is a +15 year China manufacture of reliable, cost-effective equipments. Our superior products mainly include: Vibration Test Systems, Shock Test Systems, Bump Test Systems, Drop Tester, Packaging Transportation Simulators, and Combined Environmental Test Chambers.
Labtone started business in 2002 in a plant located in Shenzhen and moved to our new, expanded 6,000 square meter facility in Dongguan, Guangdong in 2015. Today, our products are found around the world in electronics, automotive, aerospace, telecommunication, optoelectronics instrument and industrial machinery applications. Our experience and commitment to new product development has resulted in products that are easy to use, accurate and designed for decades of service.
Labtone products carry a one-year(12months) warranty. We provide comprehensive factory services and supports, technical literatures, manuals and guides as well as having qualified staffs and experts to solve your problems.
We sincerely invite you to visit our factory.
shock test machine Services
Presales:
In-Sales:
After-Sales:
WorkShop
More details, please contact Sophie at 86 159 8990 7254 Email: lab02@labtone.cn
