Product Details:
|
| Name: | High Standard Mechanical Shock Test Equipment For Sony Digital Cameras, Components | Table Size: | 300 X 300 |
|---|---|---|---|
| Specimen Max Weight(kg): | 5 | Shock Pulse: | Half Sine |
| Acceleration Range (m/s2): | 20----35000G | Pulse Duration Range (ms): | 0.1~11 |
| High Light: | mechanical testing equipment,vibration and shock testing |
||

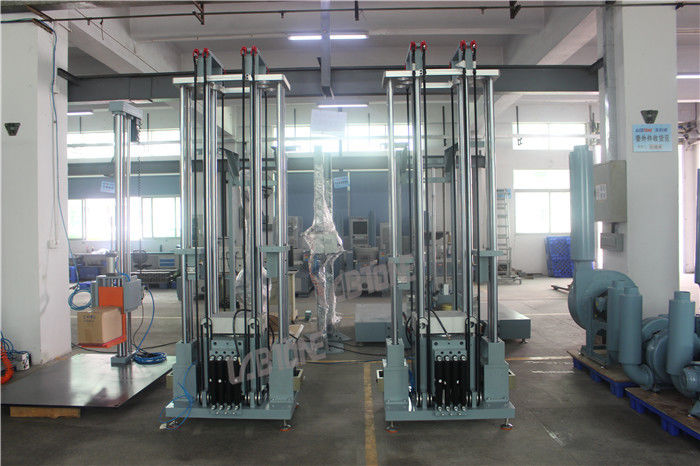

High Standard Mechanical Shock Test Equipment For Sony Digital Cameras, Components
Product description
Labtone is the leading manufacturer of shock test systems. All shock testers are designed as customer's requeirements in accordance with ISTA, IEC, MIL-STD, JEDEC, and other international standards. By appling high accleration to computer parts, smart phones, tables, laptops, cellular phones, and various mobile products to conduct product fragility test.
Feature
Maximum acceleration : 35000G
Vibration insulation seismic base apply machine to various environment.
The pneumatic braking system and electric lift system enable precise drop repeatability
A half sine shock pulse can be generated to produce a required pulse duration by replacing the shock pads
| Model | SKT30 | SKT50 | SKT100 | SKT200 | SKT300 | SKT600 | SKT1000 | ||
| Table Size (cm) | 40 x 40 | 50 x 60 | 70 x 80 | 100 x 100 | 120 x 120 | 150 x 150 | 200 x 200 | ||
| Max. Specimen Weight(kg) | 30 | 50 | 100 | 200 | 300 | 600 | 1000 | ||
|
Max. Acceleration (G) |
Half Sine | 600 | 600 | 600 | 500 | 500 | 300 | 300 | |
| Saw-tooth | 100 | 100 | 100 | 100 | 100 | 100 | 100 | ||
| Square | 150 | 150 | 150 | 100 | 100 | 100 | |||
|
Pulse duration (ms) |
Half Sine | 30—0.5 | 30～1 | 30～1 | 30～2 | 20～3 | 20～3 | 20～3 | |
| Saw-tooth | 18～6 | 18～6 | 18～6 | 18～6 | 18～6 | 16～6 | 18～6 | ||
| Square | 30～6 | 30～6 | 30～6 | 30～6 | 30～6 | 30～6 | |||
| Controller cabinet dimension(cm) | W55*D50*H80 | ||||||||
| Machine weight(Kg) | 1900 | 2300 | 3200 | 4200 | 8500 | 15500 | 21500 | ||
| Power supply | 3(phase) AC380V 50/60Hz Compressed air 0.5～0.8MPa | ||||||||
| Standards | GB/T2423-2008 GJB1217 GJB360.23 GJB150 GJB548 MIL-STD-202F IEC-68-2-27 MIL-STD-883E MIL-STD-810F ISTA UL | ||||||||
| Model | HSKT10 | HSKT10D | G-HSKT15 | G-HSKT30 | G-HSKT35 |
| Table Size(mm) | 200 x 250 | 300 x 300 | 250 x 250 | 250 x 250 | 300 x 300 |
|
Max. Payload (kg) |
10 | 25 | 10 | 10 | 5 |
| Shock Pulse | Half Sine Wave | ||||
| Acceleration Range(G) |
20~2000 (bare table) |
20~10000 (bare table) |
20~15000 (bare table) |
20~30000 (bare table) |
20~35000 (bare table) |
| Pulse Duration(ms) | 0.2~18 | 0.1~11 | |||
Customer Services
Presales:
In-Sales:
After-Sales:

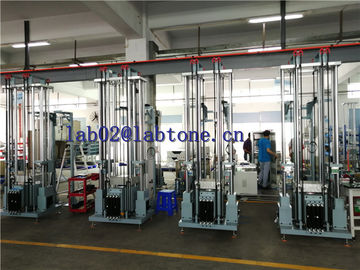

Installation picture:
