Incline Impact Test Machine , ISTA Testing Equipment Meet Industry Specifications

Incline Impact Test Machine, ISTA Testing Equipment Meet Industry Specifications

Inclined shock tester is mainly used to simulate the impact and damage resistance of product packaging in a real environment, such as handling, loading and unloading, impact during shifting from one cabin to another, and impact resulted from emergency brake during transport. Inclined shock tester satisfies industrial standards for packaging, such as ASTM, ISTA, ISO, and MIL-STD.

Technical Parameter

• Max. Payload: 300kg
• Max. Dimension of Specimen: 1200x1200x1600 mm
• Max. Shock Distance: 1.8M (discussible)
• Impact Velocity Range: 1 - 2.1 m/s
• Tolerance of Impact Speed: ≤ ±5%
• Speed Display: three-digit numbers
• The Impact Angle: 10°±1°(Negotiable, nonstandard)
• Base Dimension: W1800×H2000mm (Equipped with solid wood board)

Features

The operation is pneumatic, fast, safe and reliable.

The angle between the guide surface and the horizontal level is 10^°

Perfect protection device and safety interlock device to ensure the safety of the operator.

Accept special customization, and additional installation of speed measuring device. Provide accurate impact velocity measurement.

Product Application

Labtone Inclined Impact Test Systems meet industry specifications with the added benefit of some new and innovative design features. The unique articulating carriage system we utilize allows the carriage to pivot and raise so that it becomes parallel with the ground. This design feature makes it much safer and easier to load test items with a forklift. After the specimen has been loaded, the carriage pivots back into its testing position and you are ready to begin impact testing.

Working Principle

By using the principle of potential energy into kinetic energy, the box is free to slide to the bottom of the predetermined position to obtain a certain impact speed and a speed direction perpendicular to the impact plate collision to achieve the intended test purposes.

Equipment Components

Presales:

• Technical consultation: test method, laboratory planning and suggestion.
• Equipment selection: selection scheme, FAQ.
• Product testing scheme.

In-Sales:

• Customer communication and progress report.
• Guidance for pre-installation preparation, equipment commissioning and test run.
• Calibration (when Third Party’s verification is required).

After-Sales:

• Technical training: operation of equipment, daily maintenance, common fault diagnosis and troubleshooting.
• Scheduled on-site service: Detection of problem as soon as possible in order to eliminate equipment and anthropogenic hazards. This is to ensure long term and stable equipment operation as well as delivery of latest technical information.
• Technical support: special paid services are provided according to customer’s needs.

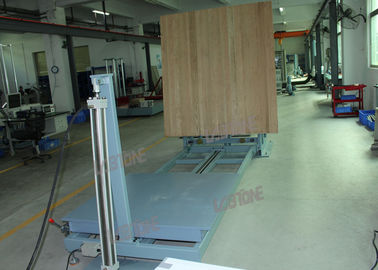

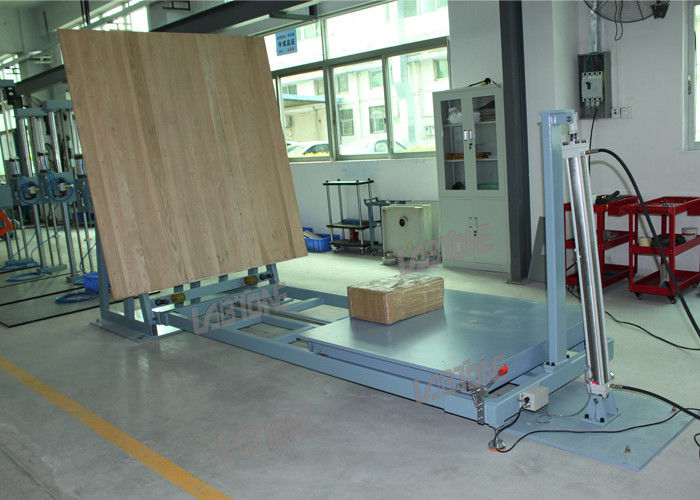

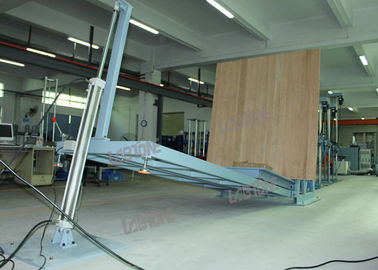

Product Picture
