ISTA Lab Drop Tester Machine Perform Surfaces , Corner and Edge drop Test OEM Available

ISTA Lab Drop Tester Machine Perform Surfaces , Corner and Edge drop Test  OEM Available
ISTA Lab Drop Tester Machine Perform Surfaces , Corner and Edge drop Test  OEM Available ISTA Lab Drop Tester Machine Perform Surfaces , Corner and Edge drop Test  OEM Available ISTA Lab Drop Tester Machine Perform Surfaces , Corner and Edge drop Test  OEM Available

Large Image :  ISTA Lab Drop Tester Machine Perform Surfaces , Corner and Edge drop Test OEM Available

Product Details:
Place of Origin: CHINA
Brand Name: LABTONE
Certification: CE ISO
Model Number: DT150
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: international wooden case
Delivery Time: 15-20 days
Payment Terms: T/T
Supply Ability: 50 Sets / Month

ISTA Lab Drop Tester Machine Perform Surfaces , Corner and Edge drop Test OEM Available

Description
Drop Height: 300-2000mm Specimen Weight: 85kg
Specimen Dimension: 800*800*800mm Drop Mode: Freedom
Machine Dimension: 1700*1200*2750mm Machine Weight: 550kg
Warranty: 12 Months Air Pressure: 0.5-0.7Mpa
Name: ISTA Drop Test Machine Perform Surfaces, Corner And Edge Drop Test OEM Available
High Light:

smartphone drop test

,

free fall drop test equipment





ISTA Drop Test Machine Perform Surfaces, Corner and Edge drop Test OEM Available





Product description

High Accuracy Drop Tester for Packaged Freight Description & Application


Drop test Machine is applied to test the anti-vibration, covering-protection capability of packaging material, or product’s impact-resisting capability to determine the improvement parts of related packing design, material and structure. It contribute to promote the packing material and product’ strength.

Labtone "1G+" project strictly ensure the accuracy. Besides precision plane drop testing, it also can undertake edge and angle test to ensure the complete performance evaluation for the package.



High Accuracy Drop Tester for Packaged Freight specifications



Model DT150 DT200
Drop height range (mm) 300---1500 300----2000
Specimen max.weight (kg) 85 85
Specimen max. size (mm) 800*800*800 800*800*800
Drop mode Freedom
Machine Dimension (mm) 1500*1000*2150 1700*1200*2750
Machine weight (kg) 480 550
Power supply AC220V 50Hz compressed air 0.5~0.7Mpa
Standards ISO2248-72(E) GB/T4857.5 JISZ0202-87 IEC68-2-27



High Accuracy Drop Tester for Packaged Freight Features



1 Satisfy and even beyond GB, IEC, ASTM, ISTA and other industrial standards.


2 Can perform surfaces, corner and edge drops.


3 Precise guiding system and pneumatical driving;

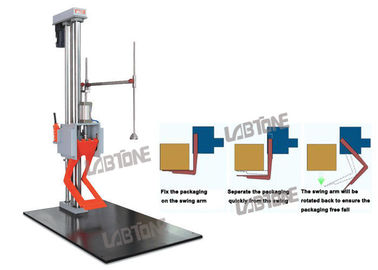

4 Unique swing arm structural design, escape acceleration of swing arm greater than 3G.;


5 With double column guide, hydraulic buffer will absorb the dynamic force of the swing arm, such that the movement is stable, reliable with low noise



6.Self-locking screw in lifting mechanism to prevent accidental downward glide.



7.Automatic pneumatic interlocks to prevent abnormal detachment of swing arm.



8.Extensible support bracket and steel base plate.

ISTA Lab Drop Tester Machine Perform Surfaces , Corner and Edge drop Test  OEM Available 0

ISTA Lab Drop Tester Machine Perform Surfaces , Corner and Edge drop Test  OEM Available 1ISTA Lab Drop Tester Machine Perform Surfaces , Corner and Edge drop Test  OEM Available 2ISTA Lab Drop Tester Machine Perform Surfaces , Corner and Edge drop Test  OEM Available 3



Packaging

Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case,which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless,moisture corrosion, good transparency etc

ISTA Lab Drop Tester Machine Perform Surfaces , Corner and Edge drop Test  OEM Available 4



FAQ



1. Q: What is your warranty ?

  • 12 months product warranty.Free components will be provided if any performance failure occurs within 12 months caused by non-human damage.

2. Q: How-to vedio provided ?

  • Yes, if required, our engineers will record a specialize how-to video for you.

3. Q: Is the machine made in your own plant ?

  • Yes, welcome to visit our plant(factory), also we support OEM and ODM.

4. Q: What about the quality ?

  • Each instruments must be carried out 100% quality examination and test when shipping and delivery goods.
  • All of our machine are strictly according to CE & ISO standards.
