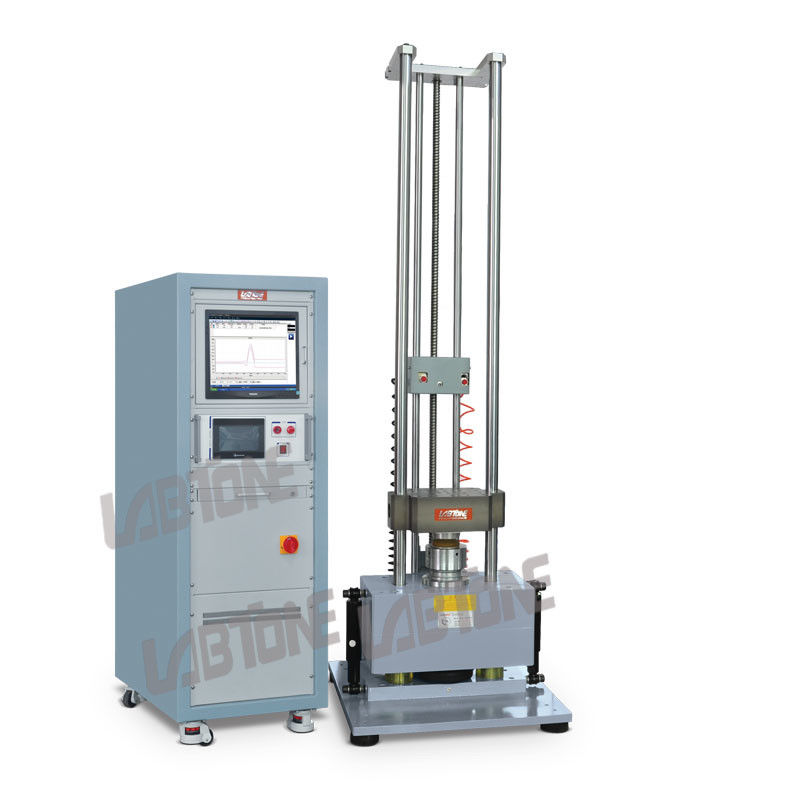

Mechanical Shock Test Equipment Performs Batteries Tests Of Half Sine 150g 6ms

Mechanical Shock Test Equipment Performs Batteries Tests Of Half Sine 150g 6ms
Mechanical Shock Test Equipment Performs Batteries Tests Of Half Sine 150g 6ms Mechanical Shock Test Equipment Performs Batteries Tests Of Half Sine 150g 6ms Mechanical Shock Test Equipment Performs Batteries Tests Of Half Sine 150g 6ms

Large Image :  Mechanical Shock Test Equipment Performs Batteries Tests Of Half Sine 150g 6ms

Product Details:
Place of Origin: CHINA
Brand Name: LABTONE
Certification: CE, ISO
Model Number: HSKT10
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: Negotiable
Packaging Details: International wooden case
Delivery Time: 45 working days
Payment Terms: T/T
Supply Ability: 15 Sets / Month

Mechanical Shock Test Equipment Performs Batteries Tests Of Half Sine 150g 6ms

Description
Model: HSKT10 Table Size: 200 X 250
Specimen Max Weight(kg): 10 Shock Pulse: Half Sine
Acceleration: 20-1500G
High Light:

shock and drop testing

,

mechanical testing equipment

Shock Tester , Shock Test Systems Performs Batteries Tests Of Half Sine 150g 6ms



Selection Guide

We ultimately recommend the most suitable system configuration for every testing application based on two important criteria:

  • The size of your largest test item
  • The performance capability needed to meet your testing needs

Shock Test Machine Specifications



Model HSKT10 HSKT10D
Table size (mm) 200 x250   300 x 300
Specimen max weight(kg) 10 10
Shock pulse Half-sine
Acceleration range (m/s2) 20----1500 20----10000
Pulse duration range (ms) 0.5~11 0.2~11
Seismic base Pneumatic springs device
Utility reqyurements AC220V 50Hz 5A Air pressure:more than 0.5Mpa



Model
SKT30
SKT50
SKT100
SKT200
SKT300
SKT600
SKT1000
Table Size (cm)
40 x 40
50 x 60
70 x 80
100 x 100
120 x 120
150 x 150
200 x 200
Max. Specimen Weight(kg)
30
50
100
200
300
600
1000

Max.
Acceleration (G)
Half Sine
600
600
600
500
500
300
300
Saw-tooth
100
100
100
100
100
100
100
Square

150
150
150
100
100
100

Pulse duration
(ms)
Half Sine
30—0.5
30~1
30~1
30~2
20~3
20~3
20~3
Saw-tooth
18~6
18~6
18~6
18~6
18~6
16~6
18~6
Square

30~6
30~6
30~6
30~6
30~6
30~6
Controller cabinet dimension(cm)
W55*D50*H80
Machine weight(Kg)
1900
2300
3200
4200
8500
15500
21500
Power supply
3(phase) AC380V 50/60Hz Compressed air 0.5~0.8MPa
Standards
GB/T2423-2008 GJB1217 GJB360.23 GJB150 GJB548 MIL-STD-202F IEC-68-2-27 MIL-STD-883E MIL-





Company profile:



Labtone Test Equipment Co., Ltd. is a +15 year China manufacture of reliable, cost-effective equipments. Our superior products mainly include: Vibration Test Systems, Shock Test Systems, Bump Test Systems, Drop Tester, Packaging Transportation Simulators, and Combined Environmental Test Chambers.

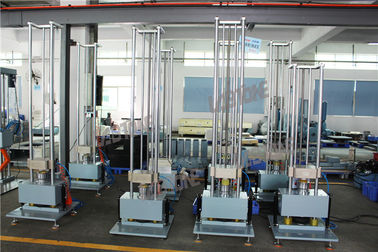

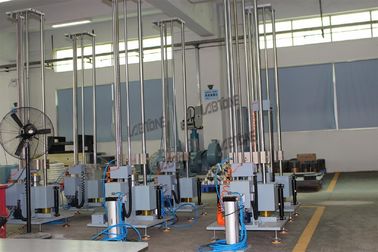

Labtone started business in 2002 in a plant located in Shenzhen and moved to our new, expanded 6,000 square meter facility in Dongguan, Guangdong in 2015. Today, our products are found around the world in electronics, automotive, aerospace, telecommunication, optoelectronics instrument and industrial machinery applications. Our experience and commitment to new product development has resulted in products that are easy to use, accurate and designed for decades of service.



Labtone products carry a one-year(12months) warranty. We provide comprehensive factory services and supports, technical literatures, manuals and guides as well as having qualified staffs and experts to solve your problems.



We sincerely invite you to visit our factory.



shock test machine Services



Presales:

  • Technical consultation: test method, laboratory planning and suggestion.
  • Equipment selection: selection scheme, FAQ.
  • Product testing scheme.



In-Sales:

  • Customer communication and progress report.
  • Guidance for pre-installation preparation, equipment commissioning and test run.
  • Calibration (when Third Party’s verification is required).



After-Sales:

  • Technical training: operation of equipment, daily maintenance, common fault diagnosis and troubleshooting.
  • Scheduled on-site service: Detection of problem as soon as possible in order to eliminate equipment and anthropogenic hazards. This is to ensure long term and stable equipment operation as well as delivery of latest technical information.
  • Technical support: special paid services are provided according to customer’s needs.
