Product Details:
|
| Max Displacement: | 38 Mm | Max Exciting Force: | 300 Kg |
|---|---|---|---|
| Mass Of Armature: | 3 Kg | Diameter Of Armature: | Ф150 Mm |
| Control Computer: | 1 Set | Operating System: | Win 7 / 8 / 10 |
| High Light: | electrodynamic vibration shaker system,vibration testing equipment |
||
Leading Manufacturer Vibration Shaker System for Electronics PCB Testing
Features:
Meet Standards:
MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS etc.
Applications:
Automotive, Electronics, Aerospace, Vessel, Telecommunication, Optoelectronics, Instrument etc.
Main Parameters:
Max. sine exciting force: 300kg
Max. random exciting force: 300kg
Max. shock exciting force: 600kg
Frequency range: 2-300Hz
Max. displacement: 38mm
Max. velocity: 2.0m/s
Max. acceleration: 100g
Equipment Configuration
| Item | Configuration | Qty. |
| 1. | Vibration shaker | |
| VG300-40 electromagnetic vibration generator | 1 set | |
| BL-300 cooling blower (including silencer) | 1 set | |
| VT640 vertical table 400 x 400mm | 1 set | |
| Automatic centering system of armature | 1 set | |
| 2. | Digital switch power amplifier | |
| Amp3K digital switch power amplifier | 1 set | |
| Servo protection system | 1 set | |
| Excitation power supply | 1 set | |
| 3. | Digital vibration controller (integrated instrument cabinet) | |
| Master unit of digital vibration controller | 1 set | |
| System acceleration sensor | 1 pcs | |
| Control computer | 1 set | |
| Control software installation disc | 1 set | |
| 4. | Attached accessories | |
| Extension cable and duct hose | 1 set | |
| Operation instructions, inspection report, certificate, maintenance manual, etc. | 1 set | |
| Attached special tools | 1 set | |
| Vibration press rod / holddown strip fixture | 1 set |
Our Services:
| Service commitment and support | |
| Pre-sales service | Technical Advisory; |
| Equipment Selection; | |
| Product testing scheme. | |
| In-sales service | Close and effective communication with clients; |
| Timely and effectively solve the related issues. | |
| After-sales service | Warranty period of one year ; |
| Equipment installation and debugging; | |
| Technical training; | |
| Feedback within 2 hours after get the call. | |
| Others | Maintenance, modification and upgrade for the machine; |
| Design and producing for special fixtures and table | |
Standard Ⅱ digital vibration controller
Using modular design and distributed data processing program, the system is very easy to be expanded in channel and test function. Composed of 32-bit high speed DSP processing structure, low noise circuit design technology, 24 bit A/D and D/A hardware, USB2.0 high-speed data communication circuit. It supports the XP / Win7 / Win8 application software , and Word, Excel, PDF formats. Automatic storage or printing is executed at the end of the test.
Company Profile:
Labtone Test Equipment Co., Ltd. is a +15 year China manufacture of reliable, cost-effective equipments. Our superior products mainly include: Vibration Test Systems, Shock Test Systems, Bump Test Systems, Drop Tester, Packaging Transportation Simulators, and Combined Environmental Test Chambers.
Labtone started business in 2002 in a plant located in Shenzhen and moved to our new, expanded 6,000 square meter facility in Dongguan, Guangdong in 2015. Today, our products are found around the world in electronics, automotive, aerospace, telecommunication, optoelectronics instrument and industrial machinery applications. Our experience and commitment to new product development has resulted in products that are easy to use, accurate and designed for decades of service.
Labtone products carry a one-year(12months) warranty. We provide comprehensive factory services and supports, technical literatures, manuals and guides as well as having qualified staffs and experts to solve your problems.
We sincerely invite you to visit our factory.

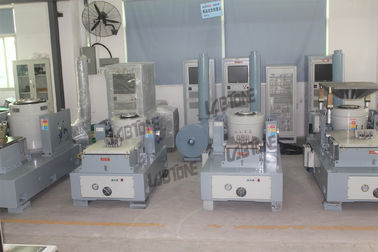

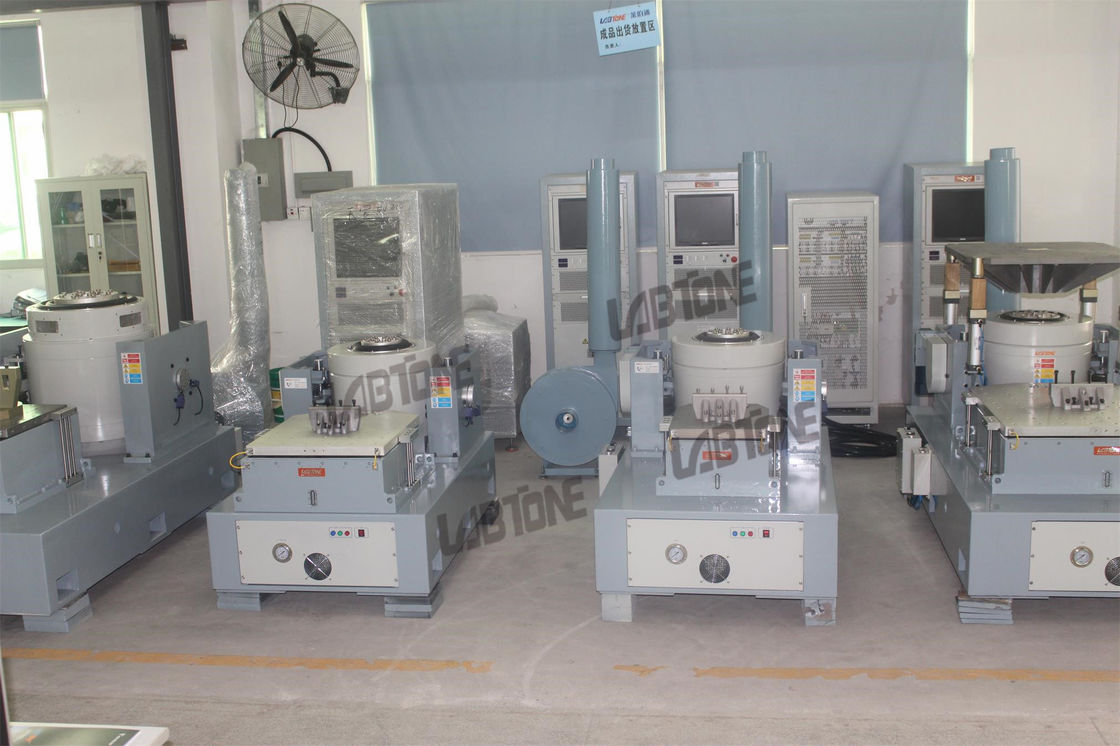

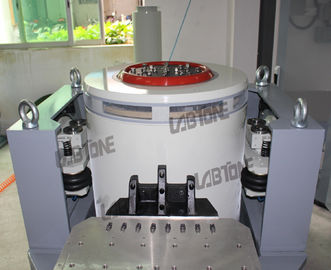

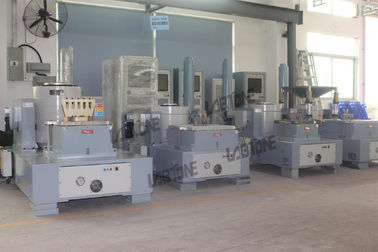

Detailed picture:
