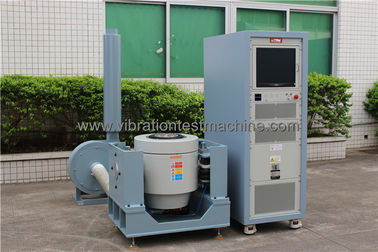

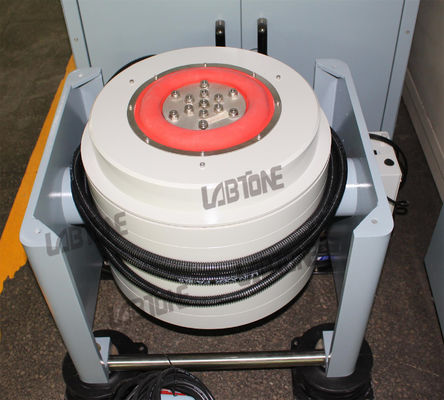

300kg.f Exciting Force Vibration Test System Perform Sine, Random and Shock

300kg.f Exciting Force Vibration Test System Perform Sine, Random and Shock
300kg.f Exciting Force Vibration Test System Perform Sine, Random and Shock 300kg.f Exciting Force Vibration Test System Perform Sine, Random and Shock 300kg.f Exciting Force Vibration Test System Perform Sine, Random and Shock

Large Image :  300kg.f Exciting Force Vibration Test System Perform Sine, Random and Shock

Product Details:
Place of Origin: Dongguang, China
Brand Name: LABTONE
Certification: CE / ISO
Model Number: EV203
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Plywood Case with Vacuum Packing
Delivery Time: 45 Working Days
Payment Terms: T/T, L/C
Supply Ability: 15 Sets / Month

300kg.f Exciting Force Vibration Test System Perform Sine, Random and Shock

Description
Max. Sine Force: 300 Kg.f Max. Random Force: 300 Kg.f
Max. Shock Force: 600 Kg.f Max. Acceleration: 100G
Max. Velocity: 120cm/s Max. Displacement: 38 Mm
High Light:

vibration testing services

,

vibration shaker system



300kg.f Exciting Force Vibration Test System Perform Sine, Random and Shock​





EV series of electromagnetic vibration testing system simulate the vibration environment under the laboratory condition, and test the impact strength as well as reliability of various vibration test applications. In the laboratory, with the aid of vibration testing system, simulations of reproduction of sinusoidal, random, resonant search and dwell, classical shock and road models, etc. can be achieved. It is essential for product quality assurance, new product research and development.





Technical Specifications: EV203-EV220



Model EV203 EV206 EV210 EV220
Vibration Generator VG300/40 VG300/50 VG1000/50 VG2000/50
Frequency(Hz) 1-2500 1-3000 1-3000 1-3000
Max Exiting Force(kg.f) 300 600 1000 2000

Max. Displacement

(mm p-p)

40 50.8 50.8 50.8
Max. Acceleration(g) 100 100 100 100
Max. Velocity(cm/s) 200 200 200 200
Payload(kg) 120 200 200 300
Armature Mass(kg) 3 6 10 20
Armature Diameter(mm) φ150 φ200 φ240 φ320
Cooling Method Forced Air Cooling
Vibration Generator Weight(kg) 460 920 1100 1600
Vibration Generator Dimension L*W*H(MM) 750*555*670 800*600*710 845*685*840 1200*870*1100
Power Amplifier Amp3k Amp6k Amp12k Amp22k
Cooling Method Forced Air Cooling
Power Amplifier Weight(kg) 250 320 350 500
Power Amplifier Dimension L*W*H(MM) 800*550*1250 800*550*1250 800*550*1520 800*550*1520
Utility
Requirements
3-phase AC380V ±10% 50Hz
Aggregate Capacity(KW) 9 20 25 35







Features:

  1. Strength of the suspension system and linear motion guiding, strong carrying capacity, good guiding functions, high stability.
  2. Perfect performance on amplitude variation.
  3. High efficient on D Class power conversion, 3 - Sigma peak current, provide the optimization of power consumption and minimum harmonic distortion.
  4.  U-type spring ,rollers and linear bearing for strong resistance of deflecting load
  5. Able to complete sine ,random , impact environmental tests
  6. High reliability, especially suitable for long-time operation
  7. Quick self-diagnosis with safety interlock, high safety reliability;
  8. High efficient on D Class power conversion, 3 - Sigma peak current, provide the optimization of power consumption and minimum harmonic distortion.



Applicable Standards:



MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS etc.




Applicable Industries:



Automotive, Electronics, Aerospace, Vessel, Telecommunication, Optoelectronics, Instrument etc.





Our Services:



Service commitment and support
Pre-sales service Technical Advisory;
Equipment Selection;
Product testing scheme.
In-sales service Close and effective communication with clients;
Timely and effectively solve the related issues.
After-sales service Warranty period of one year ;
Equipment installation and debugging;
Technical training;
Feedback within 2 hours after get the call.
Others Maintenance, modification and upgrade for the machine;
Design and producing for special fixtures and table
