|Weight Capacity:||200kg～1500kg||Power Required:||AC220V / 50Hz|
|Compressed Air:||0.5 Mpa-0.7 Mpa||Lifting Device:||Customer Supplied|
|Machine Weight:||16 Kg||Machine Size:||345 X 235 X 145 Mm|
drop impact test machine,
quick release hook drop test
1500kg Load Quick Release Drop Tester For Large Package Large Capacity
The KDT2000 Drop Tester is designed to simulate the drops and mechanical hazards that occur in distribution. It is especially suited to very large, heavy payloads which cannot be tested on conventional drop test machines.

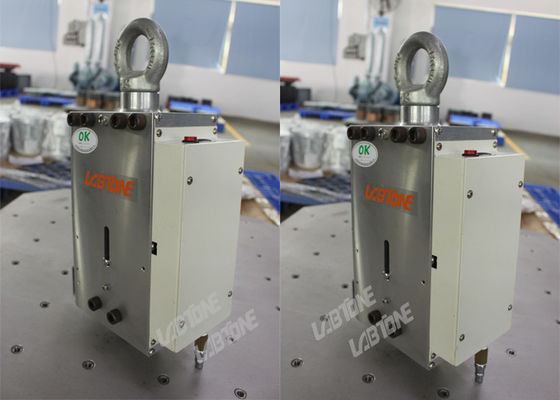

The KDT2000 consists of a quick-release mechanism, lifting ring, and foot-switch for initiating the drop. Straps wrapped around the test item form a sling that attached to the O type ring, which is placed in the latch jaws of the quick-release mechanism. The quick-release mechanism and test package are then lifted to a pre-determined height by a fork-lift, winch, or other lifting device (not included). Press the Remote Foot-switch causing the latch jaws to open and the package to fall.
|AC 220V 50Hz|
Weight of KDT2000
|11kg(excluding foot-switch, which is 5kg)|
Size of KDT2000
|345 x 235 x 145 mm|
Size of foot-switch
|270 x 200 x220 mm ( Lx D x H)|
