Product Details:
|
| Product Name: | Simulate Transportation Shaker Table | Table Size: | 1000 X 1200 |
|---|---|---|---|
| Frequency: | 2~5Hz(120~300)RPM | Amplitude: | 1 Inch (25.4mm) Fixed |
| Test Motions: | Rotary(Synchronous) | Power Supply: | AC 220V±10% 50Hz |
| Payload: | 100 Kg | ||
| High Light: | Simulate Transportation Shaker Table,Shaker Table For Package |
||

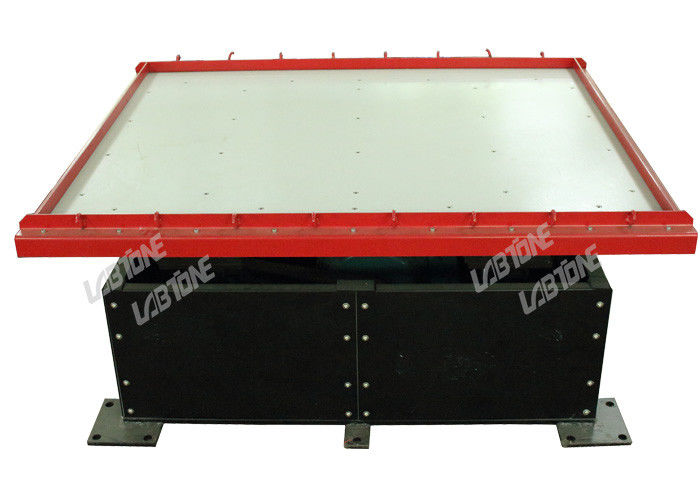

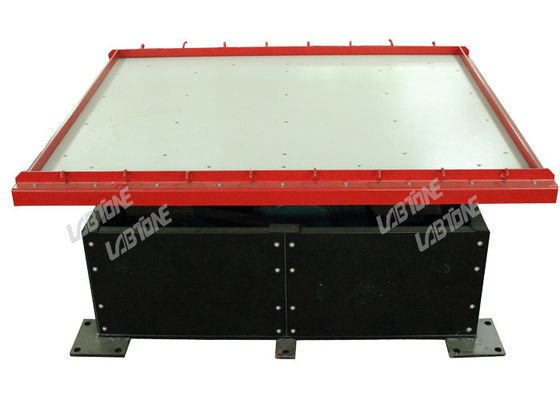

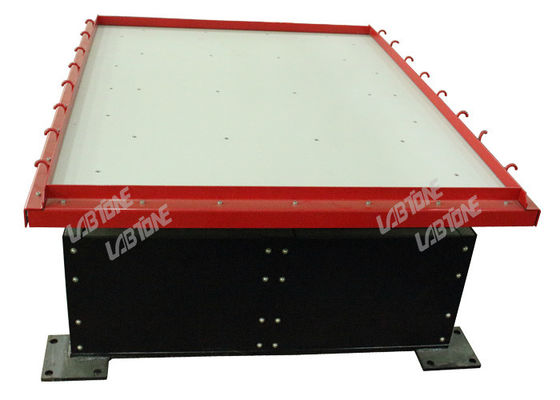

Simulate Transportation Shaker Table For Package Transportation Vibration Simulation
Description and Application
Mainly used in repeating impact, unloading or jump test that comply to ISTA , ASTM, TAPPI, ISO MIL-STD, FED-STD, UN, DOT and other industrial and government standards. Frequency range is 2-5Hz with fixed displacement of 1 inch (25.4 mm)and maximum acceleration of 1.25 G.
YST series vibration shakers apply eccentric cam principle to achieve rotation (marquee)l and non-synchronized (30°unbalance vibration) vibration modes
Features
Specifications
| Model | YST100 | YST200 | YST500 | YST1000 | YST2000 |
|
Max Payload(kg) |
100 | 200 | 500 | 1000 | 2000 |
|
Table Size(mm) |
1000x1200 | 1200x1200 | 1200x1500 | 1500x1500 | 1500x1500 |
|
Frequency Range |
2~5Hz(120~300)RPM | ||||
|
Displacement |
25.4mm Fixed | ||||
|
Test Motions |
Rotary (Synchronous) | ||||
| Power Supply | AC220V±10% 50Hz | 3-phase 380V±10% 50Hz | |||
