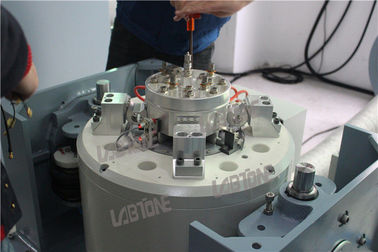

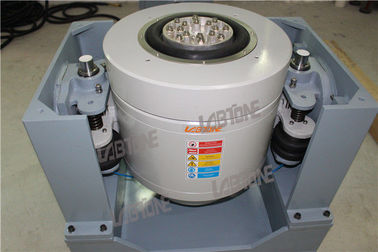

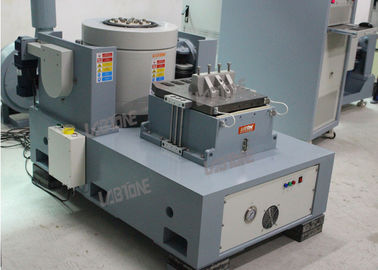

Electronics Vibration Shaker Table Systems For Lithium Battery Safety Testing System

Electronics Vibration Shaker Table Systems For Lithium Battery Safety Testing System
Electronics Vibration Shaker Table Systems For Lithium Battery Safety Testing System Electronics Vibration Shaker Table Systems For Lithium Battery Safety Testing System Electronics Vibration Shaker Table Systems For Lithium Battery Safety Testing System

Large Image :  Electronics Vibration Shaker Table Systems For Lithium Battery Safety Testing System

Product Details:

Place of Origin: China
Brand Name: LABTONE
Certification: CE / ISO
Model Number: EV210

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Case with Vacuum Packing
Delivery Time: 45 Working Days
Payment Terms: T/T, L/C
Supply Ability: 15 Sets / Month
Detailed Product Description
Frequency Range: 2 - 3000 Hz Rated Force: 10 KN
Max. Displacement: 51 Mm Shaker Weight: 1100 Kg
Shaker Dimension: 845 X 685 X 840 Mm Aggregate Capacity: 25 KW
High Light:

vibration testing equipment

,

vibration shaker system



Electronics Vibration Shaker Table Systems For Lithium Battery Safety Testing System



Specifications:



Model EV103 EV203 EV106 EV206 EV210 EV220
Vibration Generator VG300/25 VG300/40 VG600/25 VG300/50 VG1000/50 VG2000/50
Frequency(Hz) 2-4000 2-2500 2-3000 2-3000 2-3000 2-2500
Max Exiting Force(kg.f) 300 300 600 600 1000 2000
Max. Displacement (mmp-p) 25 38 25 50 50 50
Max. Acceleration(g) 100 100 100 100 100 100
Max. Velocity(cm/s) 200 120 180 200 200 200
Payload(kg) 110 120 200 200 300 400
Armature Mass(kg) 3 3 6 6 10 20
Armature Diameter(mm) φ150 φ150 φ200 φ200 φ240 φ320
Cooling Method Forced Air Cooling
Vibration Generator Weight(kg) 460 460 720 920 1100 1600
Vibration Generator Dimension L*W*H(MM) 750*560*670 750*555*670 800*600*710 800*600*710 845*685*840 1200*870*1100
Power Amplifier Amp3k Amp3k Amp6k Amp6k Amp12k Amp22k
Cooling Method Forced Air Cooling
Power Amplifier Weight(kg) 250 250 320 320 350 500
Power Amplifier Dimension L*W*H(MM) 800*550*1250 800*550*1250 800*550*1250 800*550*1250 800*550*1520 800*550*1520
Utility
Requirements
3-phase AC380V ±10% 50Hz
Aggregate Capacity(KW) 8 9 18 20 25 35




Applicable Standards: MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS etc.




Applicable Industries: Automotive, Electronics, Aviation, Large Ships, Military Industry, Rail Transit, Potoelectronics, Measuring Instrument etc.




Features:

  • Dual magnetic structure;
  • Frameless armatures;
  • Pneumatic load support;
  • Rugged trunnion design with air isolation;
  • Active armature suspension system;
  • Small waveform distortion, high carrying capacity, good guidance quality;
  • Protection functions for safety interlock;
  • Good compatibity with slip table head expander, climatic test chamber, air isolation mounts, etc.



Working Principle:



Electronics Vibration Shaker Table Systems For Lithium Battery Safety Testing System 0











Customer Vist:



Electronics Vibration Shaker Table Systems For Lithium Battery Safety Testing System 1





Packaging:

Electronics Vibration Shaker Table Systems For Lithium Battery Safety Testing System 2
