Big Sine Force Vibration Testing Equipment For Aerospace Vibration Testing

Big Sine Force Vibration Testing Equipment For Aerospace Vibration Testing
Big Sine Force Vibration Testing Equipment For Aerospace Vibration Testing Big Sine Force Vibration Testing Equipment For Aerospace Vibration Testing

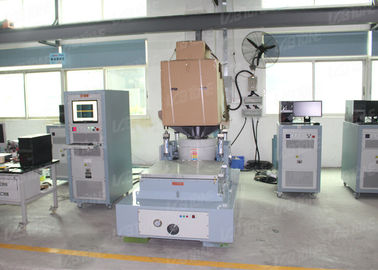

Large Image :  Big Sine Force Vibration Testing Equipment For Aerospace Vibration Testing

Product Details:

Place of Origin: Dongguang, China
Brand Name: LABTONE
Certification: CE / ISO
Model Number: EV260

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: International standard wooden case
Delivery Time: 45 Working Days
Payment Terms: T/T, L/C
Supply Ability: 15 Sets / Month
Detailed Product Description
Product Name: Vibration Testing Equipment Max Acceleration: 100 G
Max Velocity: 200 Cm/s Frequency Range: 2-2500 Hz
Max Displacement: 50 Mm Power Supply: 3-phase AC 380V±10% 50Hz
Sine Force Peak: 60 KN (6000 Kg.f) Max Load: 1000kg
High Light:

shaker testing device

,

industrial shaker table

Big Sine Force Vibration Testing Equipment For Aerospace Vibration Testing





Applicable Standards: MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS etc.





Applications:



  • Automotive parts and systems - qualification testing
  • Electronic assembly, computer equipment testing
  • Avionics and military hardware testing
  • Satellite component testing
  • Product and package testing
  • General stress screenin





Specifications: EV260-EV420



Model EV260 EV320 EV330 EV340 EV350
Vibration Generator VG6000/50 VG2000/76 VG3000/76 VG4000/76 VG5000/70
Frequency 2-2500Hz 2-3000Hz 2-2500Hz 2-2500Hz 2-2500Hz
Max Exiting Force 6000kg.f 2000kg.f 3000kg.f 4000kg.f 5000kg.f
Max. Displacement  50.8mmp-p 76mmp-p 76mmp-p 76mmp-p 76mmp-p
Max. Acceleration 100g 80g 85g 80g 100g
Max. Velocity 200cm/s 200cm/s 200cm/s 200cm/s 200cm/s
Payload 1000kg 1000kg 1000kg 1000kg 1000kg
Armature Mass 50kg 25kg 35kg 50kg 50kg
Armature Diameter φ450 φ320 φ320 φ440 φ440
Cooling Method Forced Air Cooling
Shaker Weight 3800kg 2000kg 3000kg 3500kg 3800kg
Shaker Dimension L*W*H 160*112*134cm 85*100*110cm 110*130*144cm 110*130*152cm 110*130*152cm
Power Amplifier Amp70k Amp30k Amp45k Amp55k Amp70k
Power Amplifier Weight 1000kg 550kg 600kg 800kg 900kg
Power Amplifier Dimension L*W*H 80*55*192cm 80*55*192cm 80*55*192cm  80*55*192cm 80*55*192cm
Utility
Requirements
3-phase AC380V ±10% 50Hz
Aggregate Capacity 95kw 40kw 60kw 80kw 90kw





Features:



  • Rugged suspension system and linear motion guiding, strong carrying capacity, good guiding functions, high stability;
  • Load center airbag has high static stiffness and low dynamic stiffness, strong carrying capacity, perfect performance on amplitude variation;
  • High efficiency D class power switching, 3-sigma peak current, provide finest power consumption and minimize harmonic distortion;
  • Quick self-diagnosis with safety interlock, high safety reliability;
  • Airbag shock isolation device for vibration platform without the need of additional foundation, perfect reproduction of vibrational wave and reduce vibration transmittance;
  • Provide horizontal and vertical expansion platform for different application;
  • Simple controller operation.





Warranty: 12 months from delivery, lifelong time maintainance.

After-sale service: feedback within 4-8 hours after get the call or email.

Service: OEM, ODM



Certificate: China official third-party calibration report / CE Certification





Product Detail:

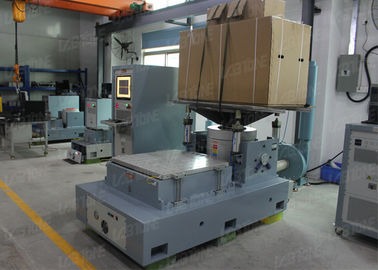

Big Sine Force Vibration Testing Equipment For Aerospace Vibration Testing 0
